5-Way Channelised UHF Cell Enhancer
Maintenance Handbook
H/book Number:-50-060601HBKM
Issue No:-
1
Date:-04/07/2003
Page:-
16 of 54
4. SYSTEM DRAWINGS

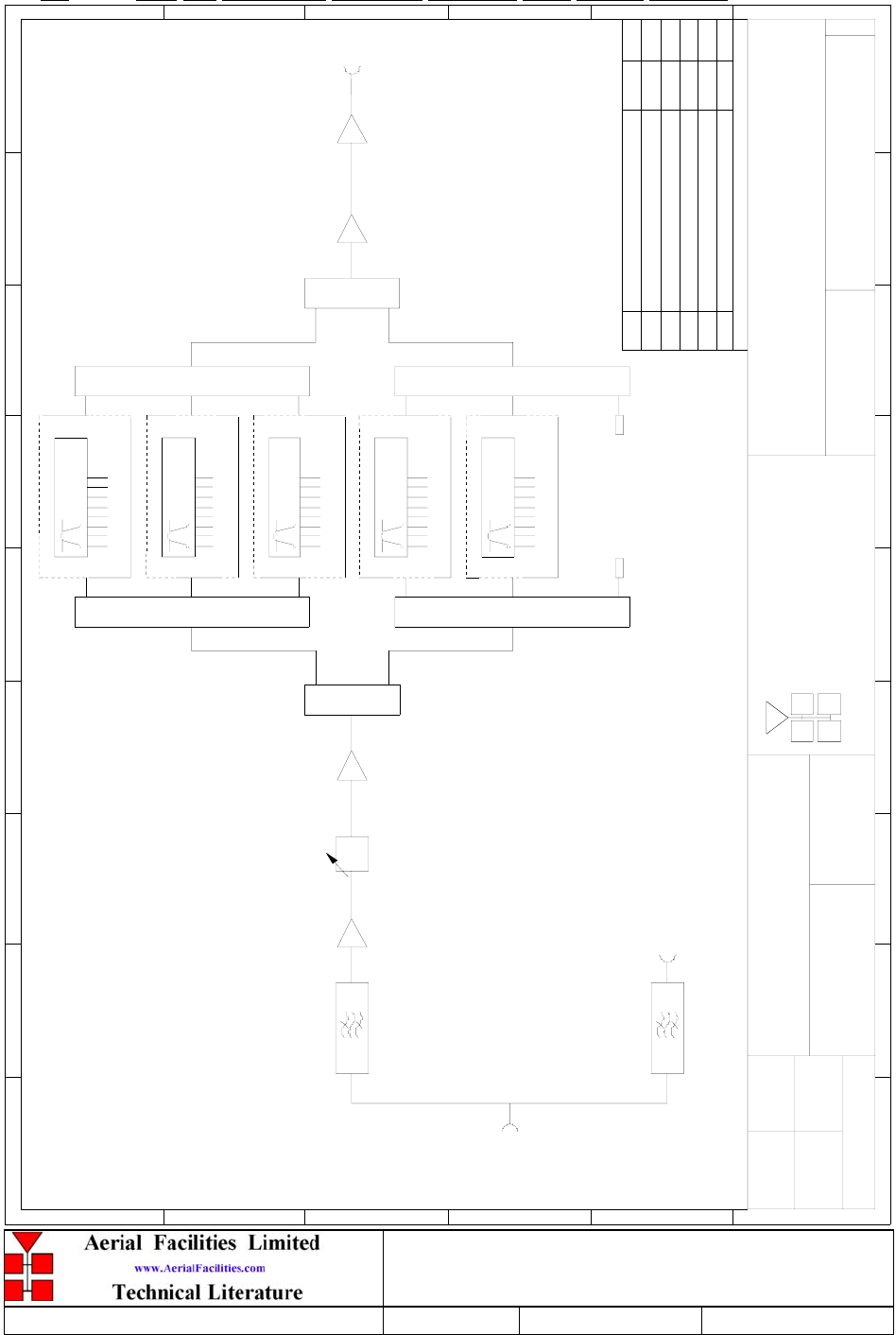

4.1 Drg. N. 50-060682, Downlink Amplifier Shelf System Diagram
DOWNLINK CCE 80dB 10W
SYSTEM DIAGRAM
50-060682
1A
-
MNR
30/06/03
BYDAT EDESCRIPT IO NNo
ISSUE
12
3
4
5
6
7
89
A
B
C
D
E
F
1 23456789
A
B
C
D
E
F
Fax : 01494 777002
Tel : 01494 777000
Aerial Facilities Limited
THIS IS A PRO PRIETARY DESIG N O F AERIAL FACIL IT IES L TD.
REPRO DUCTION OR USE OF THIS DESIGN BY OTHERS IS
PERMISSIBL E O NL Y IF EXPRESSL Y AUTHORISED IN WRITING
BY AERIAL FACILITIES LTD.
NO DECIM AL PL ACE ± 1 mm
O NE DECIM AL PL ACE ± 0 .3 mm
TWO DECIMAL PLACES ± 0.1mm
AL L DIMENSIO NS ARE IN mm
UNLESS OTHERWISE STATED
CHKD
DRAWN
APPD
DAT E
TOLERANCES SCALE
England
CUSTO MER DRAWING .No
TITLE
3
A
dB
BANDPASS FILTER
02-010701
453-454MHz
LNA
11-007402
31dB GAIN
ATTENUATOR
0-30dB
10-000701
11-007302
31dB GAIN
LNA
SPLITTER
05-002603
05-003803
SPLITTER
05-003803
COMBINER
05-002603
COMBINER
11-007302
LNA
21dB GAIN 28dB GAIN
PA
12-001901
F REQ UENCY PRO G RAM MING DAT A
B/W=15kHz
F REQ UENCY PRO G RAM MING DAT A
B/W=15kHz
F REQ UENCY PRO G RAM MING DAT A
B/W=15kHz
F REQ UENCY PRO G RAM MING DAT A
B/W=15kHz
F REQ UENCY PRO G RAM MING DAT A
B/W=15kHz
5 x 17-003012
GAIN 20dB
ALC -15dB
CHANNEL MODULE
05-003803
SPLITTER COMBINER
05-003803
BANDPASS FILTER
458-459MHz
02-010701
BASE
A
B
P RODUCTION ISSUE
MNR
30/06/03
