19 Appendix

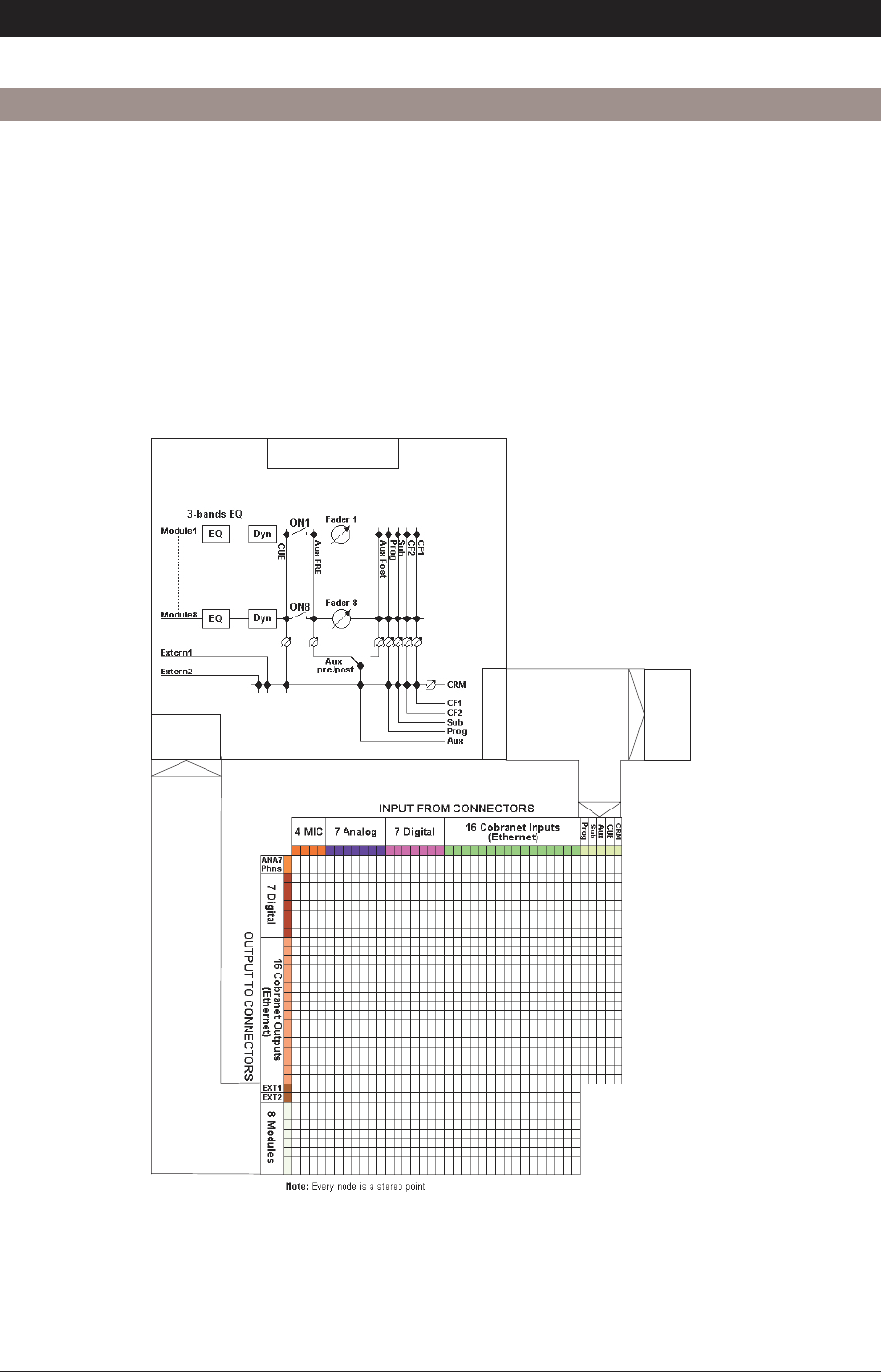

19.1 Appendix A: Blockdiagram of the Oxygen 4 Digital
The picture below represents the Oxygen 4 Digital. Basically there are two main blocks. The Mixing Console
and the I/O Matrix.
The Mixing console is the section where all the audio-processing takes place.
The I/O Matrix is a very advanced matrix which gives you not only the possibility to route the busses to the
outputs, but also the possibility to route any input directly to an output without interference from the Mixing
Console.
The modules + external 1..2 come from the I/O Matrix and enter the Mixing Console where the audio is
processed and routed to the busses. The busses exit the Mixing console to there dedicated outputs and
back to the I/O Matrix where they can be routed to any output.
Prog
Sub
Aux
CRM
N-1A
N-1B
B
U
S
S
E
S
Mixing Console
Fixed Analog Outputs
MODULES
+
EXT1..2
I/O Matrix
