14 ActiveX Application
The ActiveX application is a utility which allows you to control the Oxygen 4 Digital from a remote area. The
application is a graphical user interface which displays a combination of the 2 control-surfaces. You have
exactly the same options as 2 control surfaces together.

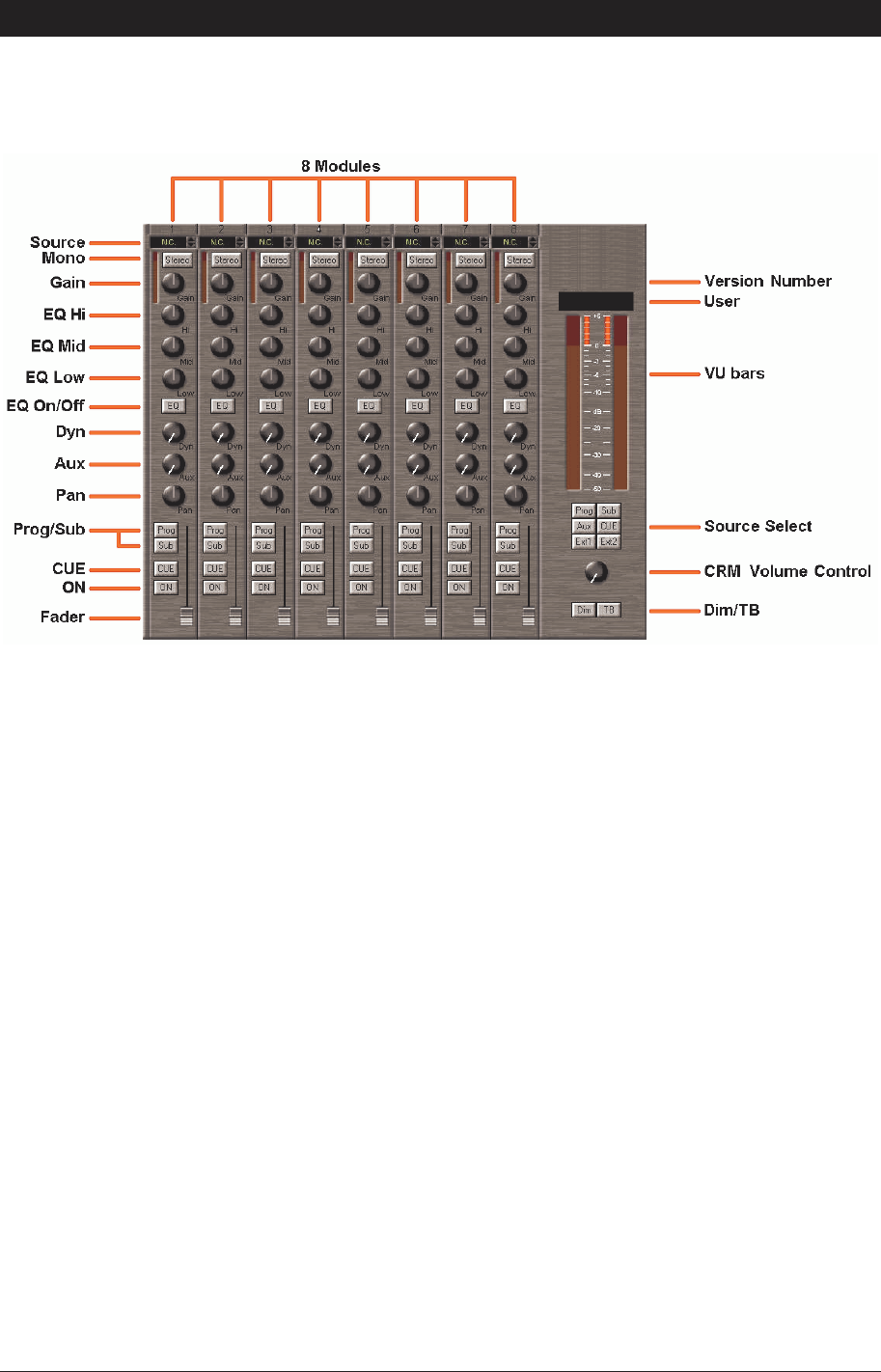

Figure 44:The ActiveX application
In the picture above you can see an overview of all the module-settings from both of the control-
surfaces together. The application works parallel with the control-surfaces. All the settings made
through software or control-surface affect the other real-time.
To set the potmeter just left-click your mouse on it and hold your left button. Now move the mouse in the
direction in which you want to move the potmeter. To reset the potmeters or fader to 0 dB position just
double-click on it.
All the functionalities of the application are also programmable into scripts. This is very helpful for
example to program multiple presets side by side. You need to have some knowledge about using the
mixing console and about programming and/or scripting (e.g. Visual Basic).
You can find all the script-functions with explanation in the appendix and on the CDROM.
