11 Webpage
The control surface of the Oxygen 4 Digital covers all the basic routing and signal processing per channel.
To control all the features of the Oxygen 4 Digital we need software tools. The software part of the Oxygen 4
Digital is a dynamic webpage that is inside the 'brain' of the console. By using it inside a network or on a
stand-alone PC you can make all kinds of advanced settings to control and setup the Oxygen 4 Digital.
In this chapter we will discuss all of the features found on the webpage.
Note: For best viewing results for the webpage use a screen resolution from 1024x768 up to 1280x1024.
11.1 Opening screen
To log on to the webpage you should enter the IP address in your internet explorer. You will get a logon
screen. The first time you logon you don't have to enter a username or password. When asked for just
press enter. It's best to make a System Administrator account as soon as possible to secure the Oxygen 4
Digital. Later on you can define your own users. How to do this will be discussed is chapter 11.10.1
After the logon procedure you will see the next screen.

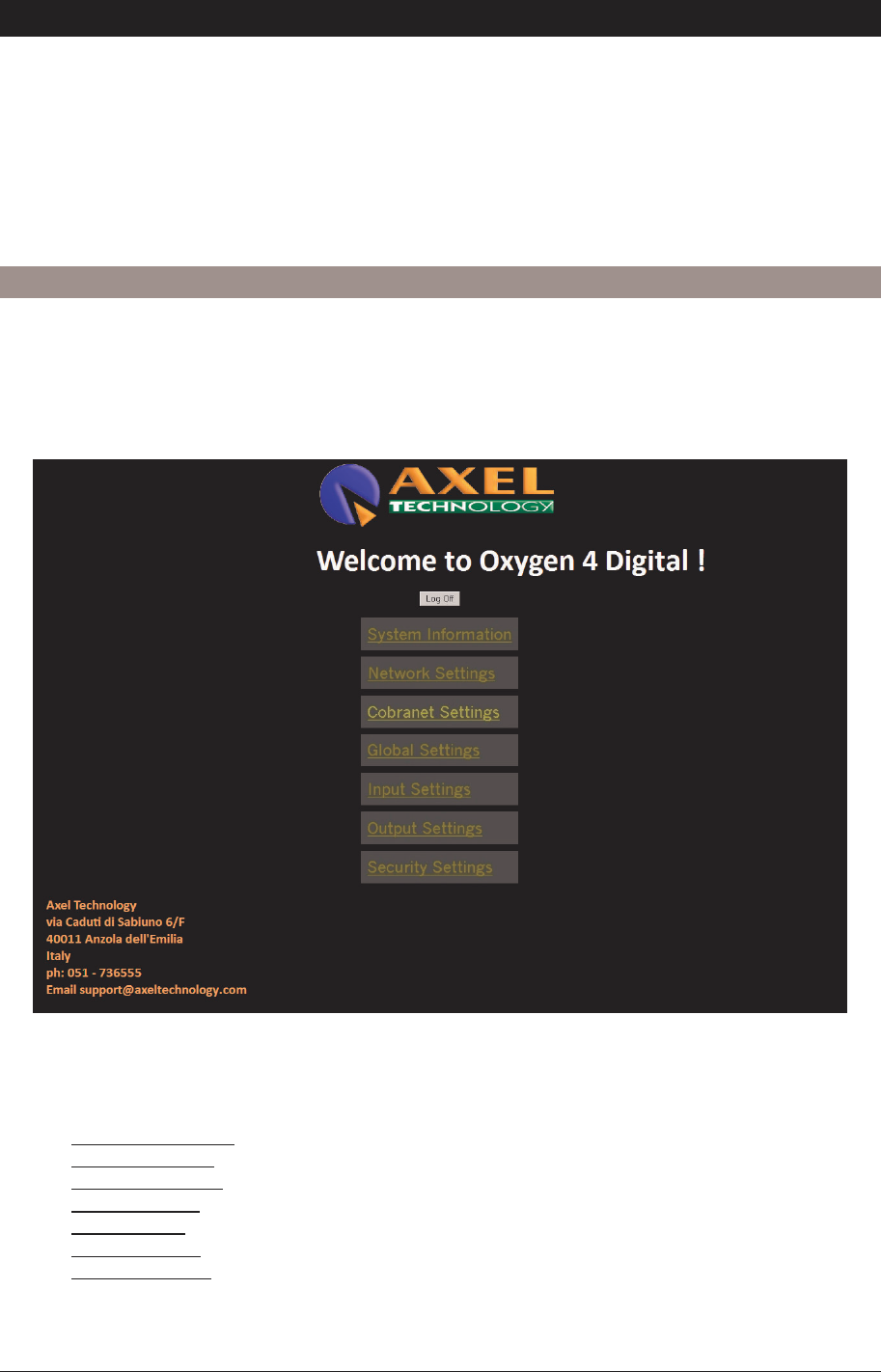

Figure 23.01: Opening screen of the webpage
The next items are displayed in the opening screen;
- System Information
- Network Settings
- Cobranet Settings
(Only available if Cobranet module is installed)
- Global Settings
- Input Settings
- Output Settings
- Security Settings
