9.3.6 Connection to Control Surfaces
The control-unit(s) can be connected to the control-unit 1 and 2 connector. The surface connected to
connector ‘TO CNTRL UNIT 1’ will always contain module 1-4 and the surface connected to connector ‘TO
CNTRL UNIT 2’ will always control module 5-8.

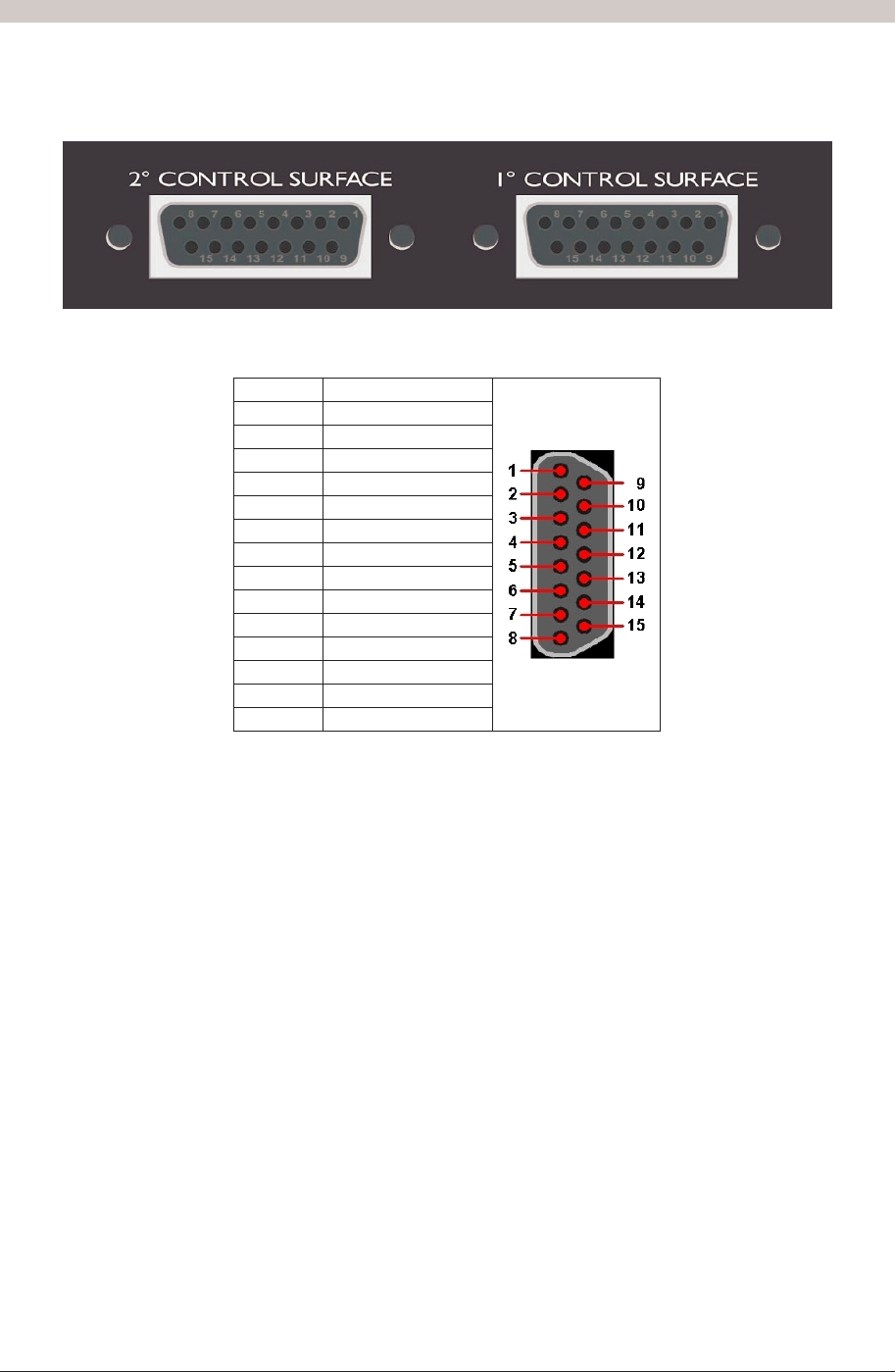

Figure 19: Control Surface connection at rear side
Pin 1 TX+
Pin 9 TX-
Pin 2 RX+
Pin 10 RX-
Pin 3 +5v
Pin 11 +5v
Pin 4 +5v
Pin 12 +5v
Pin 5 GND
Pin 13 GND
Pin 6 GND
Pin 14 GND
Pin 7 PHONE-GND
Pin 15 PHONE-LEFT
Pin 8 PHONE-RIGHT
Table 8: Pinning Control Surface connector
The power-supply for the control surface comes through the 15 pin cable. It's very important to never extend
the cable any further than the maximum specified length of 5m. This is also the length of the cable
delivered with the package. If the voltage drop on the +5 volt lines becomes to large the control-surface
won't function properly.
