9.3 Global Inputs/Outputs
9.3.1 GPIOs
The in-/outputs can be used for global functionality for example synchronization, remote function, relay logic
etc…
Each Sub-D connector represents 2 GPIO's.

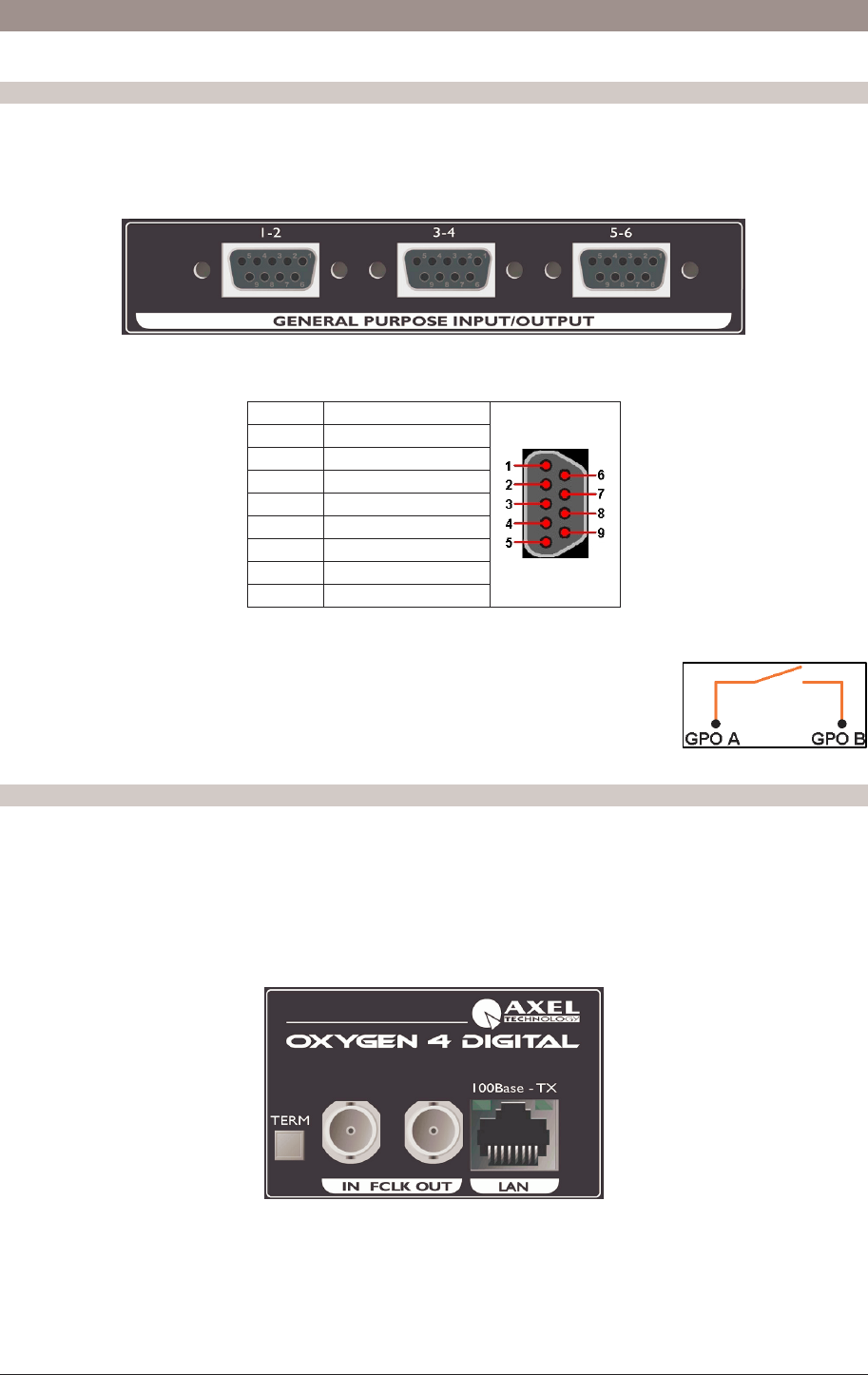

Figure 14: GPIO connections at rear side
Pin 1 GPO 1 A
Pin 6 GPO 1 B
Pin 2 Not Connected
Pin 7 GPO 2 A
Pin 3 GPO 2 B
Pin 8 Not Connected
Pin 4 GPI 1
Pin 9 GPI 2
Pin 5 Ground
Table 7: Pinning GPIO's
GPO-A and GPO-B make connection if the GPO is activated!
Maximum current: 200 mA
Maximum resistance when connection made: 12 Ohm
Maximum Voltage: 24 V
9.3.2 Word clock in and out.
On the rear side of the Oxygen 4 Digital you can find two BNC connectors with the text FCLK OUT and
FCLK IN. These are the word clock in/out connection which can be used for synchronization purposes.
If the Oxygen 4 Digital is the last in the synchronization chain, you can use the TERM. switch to terminate the
line. (75 Ohm Termination)
Figure 15: Word Clock In and Out at rear side
