Overview
The Activator is a stand-alone transmitter that connects directly to
an application-specific transmit antenna to provide low frequency
activation signal that awakens tags as they pass through the
antenna’s field. The Activator writes its location ID to the tag, which
is then retransmitted, along with the tag’s unique ID to the Receiver.
From this information, the Receiver uses the Activator ID to
determine what action to take with the Tag data.
TX OUTPUT
PWR TX RX


TM






TM

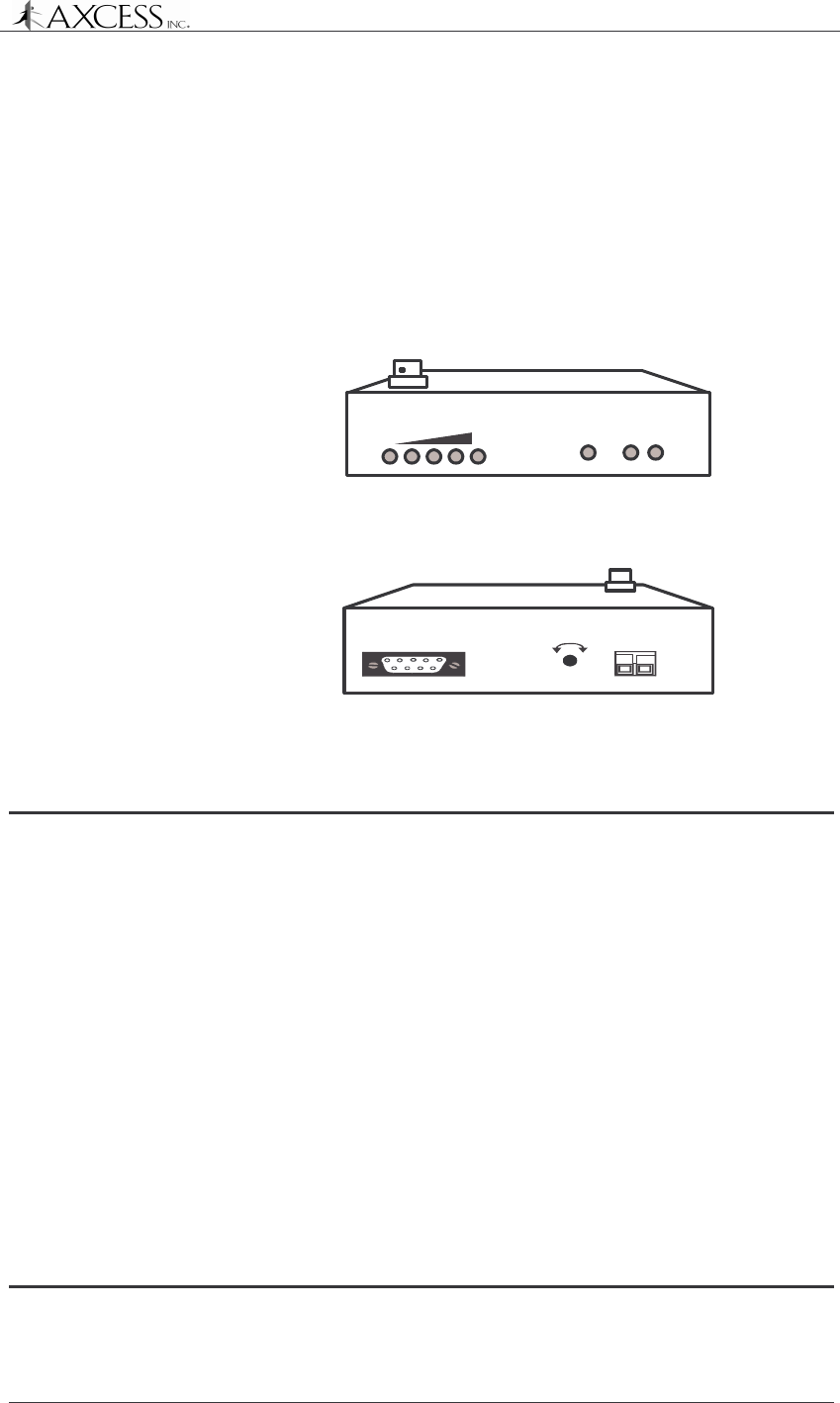

Figure 1 Front panel of the Activator
GND +24VDC
POWER
RS-232
DATA
TX CNTL
-
+
Figure 2 Back panel of the Activator
Specifications
Power
Adapter 120 V AC/24 V DC transformer
Input 24 V DC @ 1 Amp
Dimensions
Height 1.5 inches
Width 3.5 inches
Depth 6.5 inches
Weight
12 ounces
Operating
Temperature
-40

to +185

F (-40

to +85

C)
