Option: MAGIC TH2plus Keypad

7 OPTION: MAGIC TH2PLUS KEYPAD

The optional MAGIC TH2plus Keypad enables users, who do not use a PC to

operate the hybrid and who do not want to use the front display, to operate

the system in an easy and comfortable way. You can connect up to two

MAGIC TH2plus Keypads to the MAGIC TH2plus.

The following figure shows the operating elements of the Keypad.

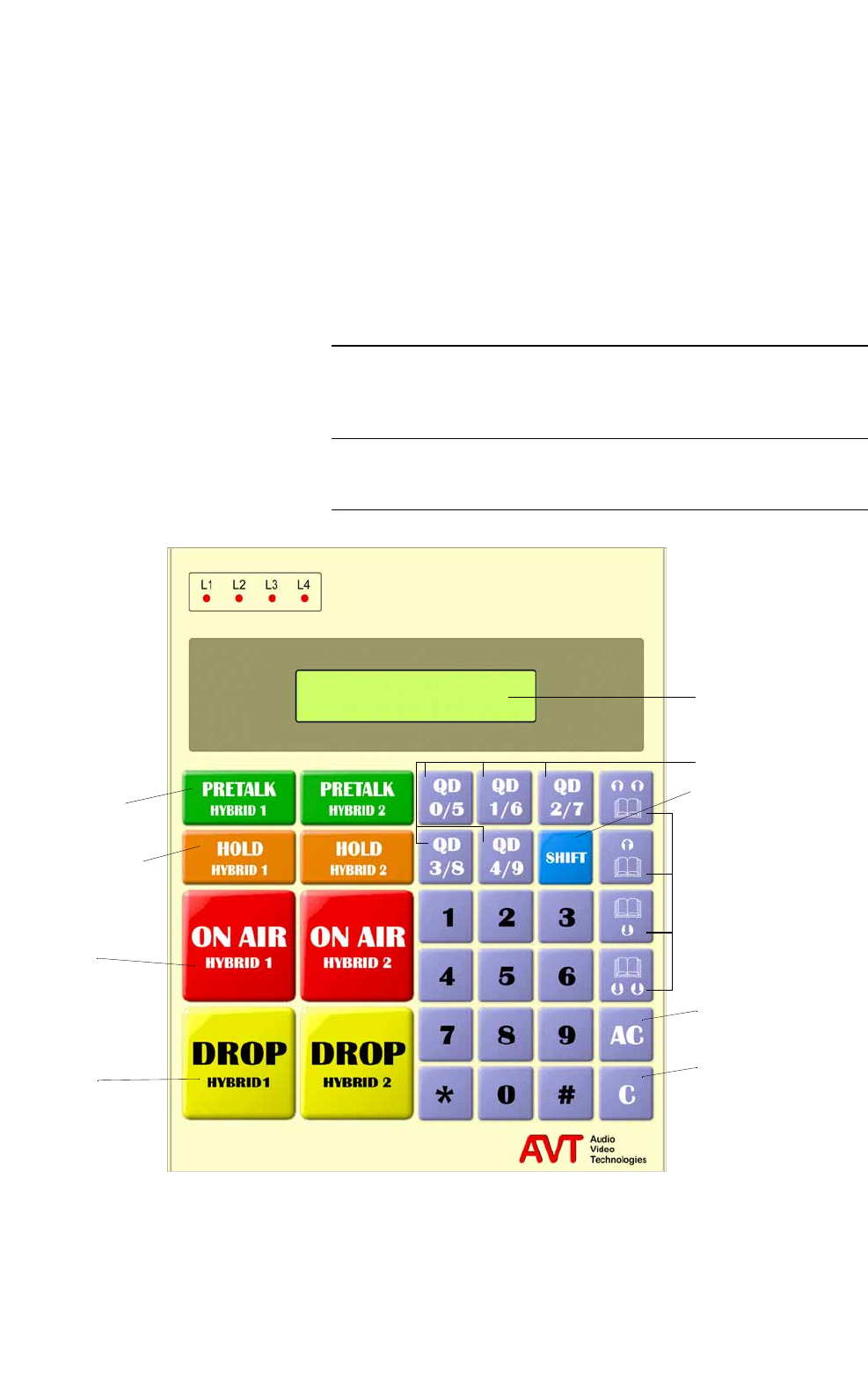

FIG. 80 KEY ASSIGNMENT MAGIC TH2PLUS KEYPAD

NOTE

To use the keypad with the MAGIC TH2plus, you must set the parameters for

the RS232 interface to 9600 Baud, no parity. If you use the QuickMenu func-

tion you reach the settings of the RS232 parameters directly via the key se-

quence

. Please select

Keypad 9600, none

Pretalk

Hold

ON AIR

Drop

Quick Dialling

Delete last character

2nd Level

Delete entry

Navigation phone book

Display

Lock line
