Option: DTMF Tone Analyser
to give the right answer. A re-pressing of a key on the telephones of the
partners is ignored by the system. A new analysis is not carried out be-
fore the button RESET DTMF is used and the display has been reset.

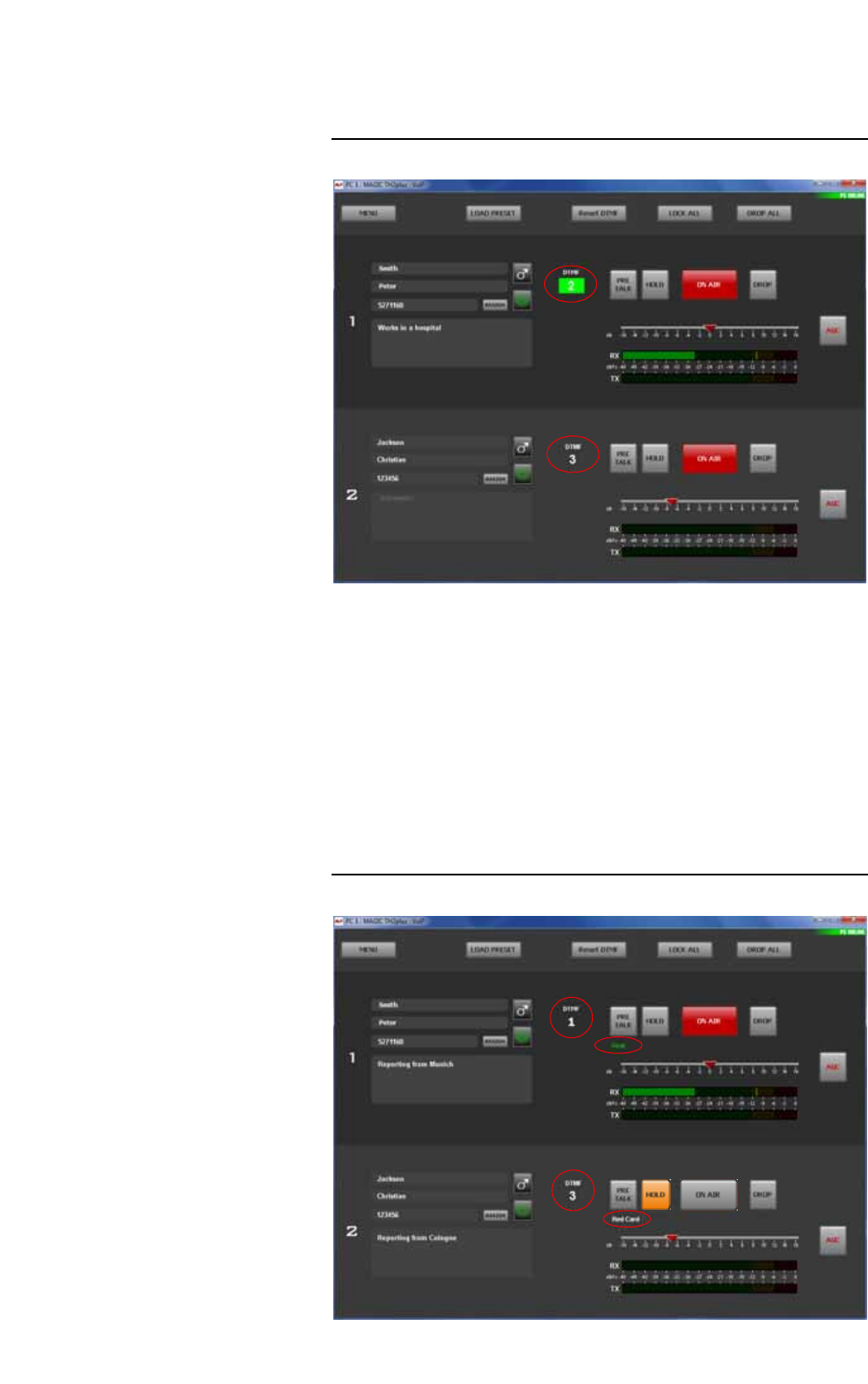

FIG. 78 DTMF GAME SHOW MODE
(3) Event Mode: This Mode should be selected if you want the callers to
signal you an event, e.g. you have two reporters in line commenting
different sport matches. As soon as something important happens, you
want to put the respective reporter On Air. If you select the Event
Mode, you can define in the configuration so-called DTMF Event La-
bels for the number keys 0 - 9 and the special keys # and *; e.g. 1 stands
for Goal, 2 stands for Penalty etc. (see CHAPTER 5.7.2.1.5, Page 54).
These labels will be displayed in addition to the DTMF tone received
and the presenter can decide if he wants to switch the caller On Air
FIG. 79 DTMF EVENT MODE
