Technical data

PAGE 79
Windows PC Software

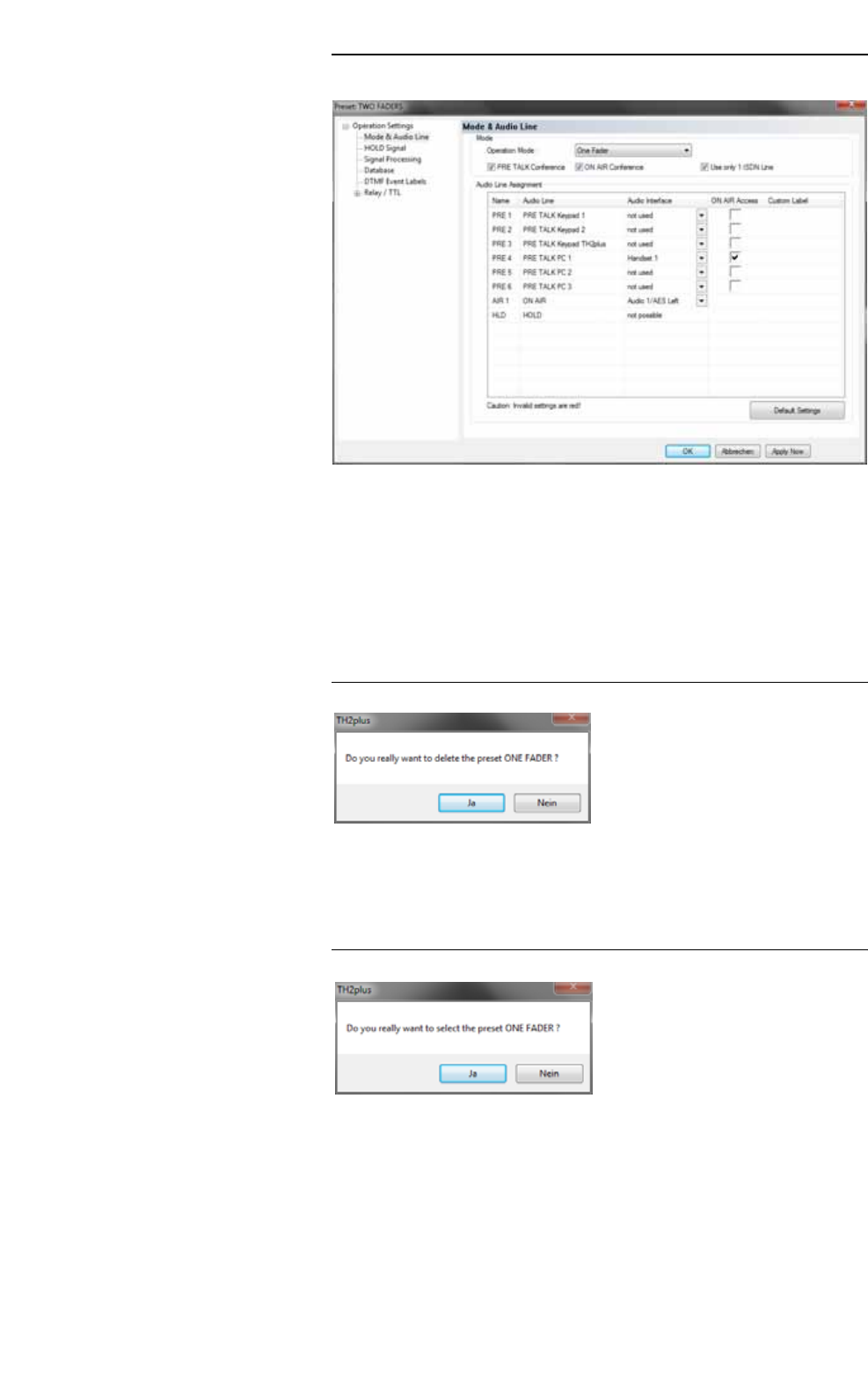

FIG. 56 EDIT PRESET
• By using the button Edit the currently selected Preset can be edited. The
current configuration of the system is not changed with this function.
• Via the button Delete the Preset selected from the list is deleted. For safety
reasons you have to confirm your selection.
FIG. 57 CONFIRMATION TO DELETE A PRESET
• To activate a Preset selected from the list, press the Select button. For
safety reasons you have to confirm your selection.
FIG. 58 CONFIRMATION TO LOAD A PRESET
• Via the button Import a Preset can be imported from a data carrier (disk,
USB stick etc.). The file extension of the Preset file is always .T2P. A click
on the button opens the file browser in which the desired file can be se-
lected.
