Windows PC Software
5.7.2.2.7 Audio Interface
MAGIC TH2plus supports analogue as well as digital AES/EBU Audio inter-
faces. If the digital Audio inputs are used, a Sample Rate Converter is availa-
ble so that external adjustments are not required if there are different digital
sources and drains.

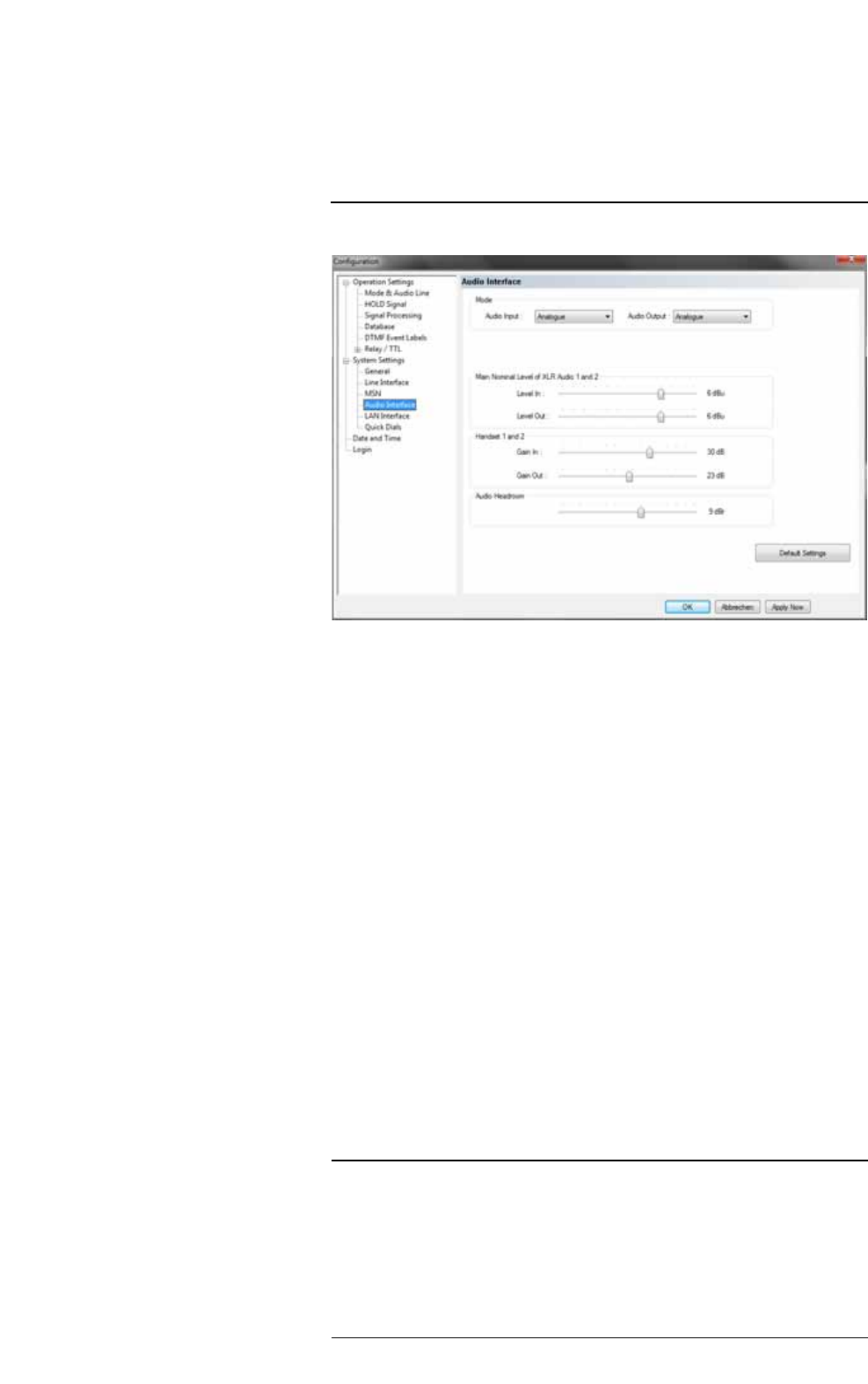

FIG. 48 AUDIO INTERFACE
Mode
•The operating mode analogue or digital can be set separately for the Au-
dio Input and the Audio Output.
AES/EBU Interface
•If the digital output is selected, the configuration for the AES/EBU Inter-
face is displayed. Under Clock Source of digital output you can select
the following options:
– Internal: The AES/EBU output clock is derived from the internal sys-
tem clock.
– External: The AES/EBU output clock is derived by the external clock
connected via the interface Audio 2/CLK IN. The clock rate of the con-
nected clock must be 48-kHz.
– Recovered: The AES/EBU output clock is derived from the digital in-
put signal of the interface Audio 1/AES IN. This configuration is usually
to be selected if you use the digital input of the system. In this way a
synchronous functioning of the transmission chain is ensured
NOTE
In the ISDN Mode, the clock of the AES/EBU output is always derived from
the ISDN clock. Therefore, if the ISDN Mode is selected, this settings will not
be displayed.
The AES/EBU input always works with recovered clock, therefore only a
configuration of the output is required.
For clock synchronisation to other systems you can use the Audio output Au-
dio 2/CLK OUT. The clock rate of the output clock is 48-kHz.
