Windows PC Software

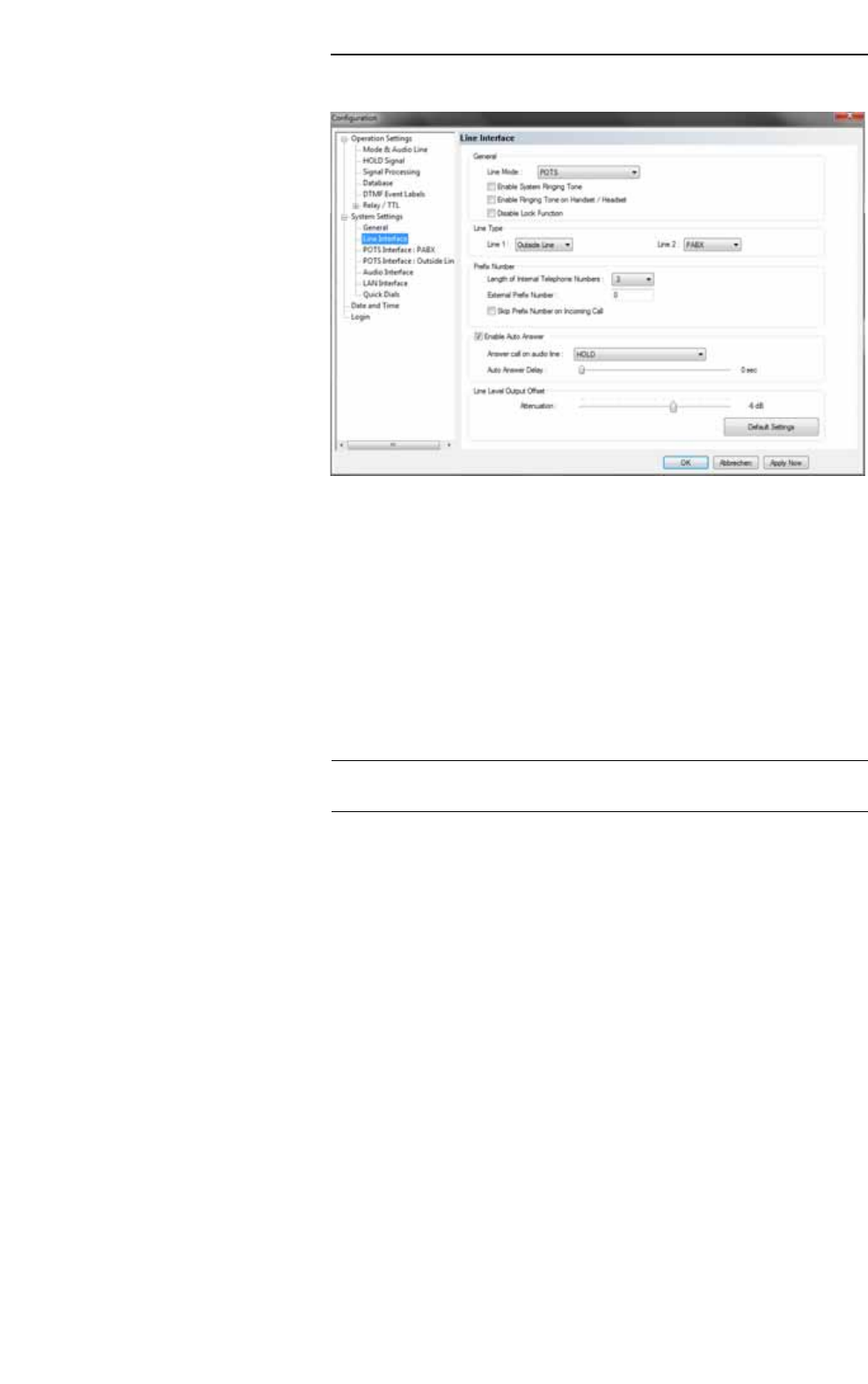

FIG. 42 LINE INTERFACE - POTS
General
•Via the option Line Mode you can select the line interface. The following
configurations are possible:
– ISDN: The system is connected to the ISDN network.
– POTS: The system is connected to analogue telephone lines.
– VoIP: The system is connected to the IP network.
•If the ISDN mode is selected, you can configure which ISDN Protocol you
want to use. The following options are available:
– Euro ISDN
– USA ISDN (NI-1)
– Japanese ISDN
• It is possible to activate a ring tone for incoming calls via the function En-
able System Ringing Tone.
•If you select Enable Ringing Tone on Handset/Headset incoming calls
can be signalled via the Pretalk Audio line if a telephone handset or head-
set is connected.
• If you activate the function Disable Lock Function, caller lines cannot be
locked for incoming calls. The LOCK ALL button will not be displayed.
Line Type
• If you operate the MAGIC TH2plus with POTS telephone lines, you can se-
lect under Line 1 and Line 2 if the system is connected to a PABX or to an
Outside Line.
NOTE
The line mode VoIP can only be selected if the fee-based Extension for Voice
over IP option (ID: 430399) is enabled in your system.
ISDN
POTS
