Windows PC Software
Operation via the Windows PC software
In the following chapters, all functions of the PC software are described in de-
tail.
5.5 The MAGIC TH2plus main window
After starting the MAGIC TH2plus Software, the main window is displayed
automatically (see Fig. 14).

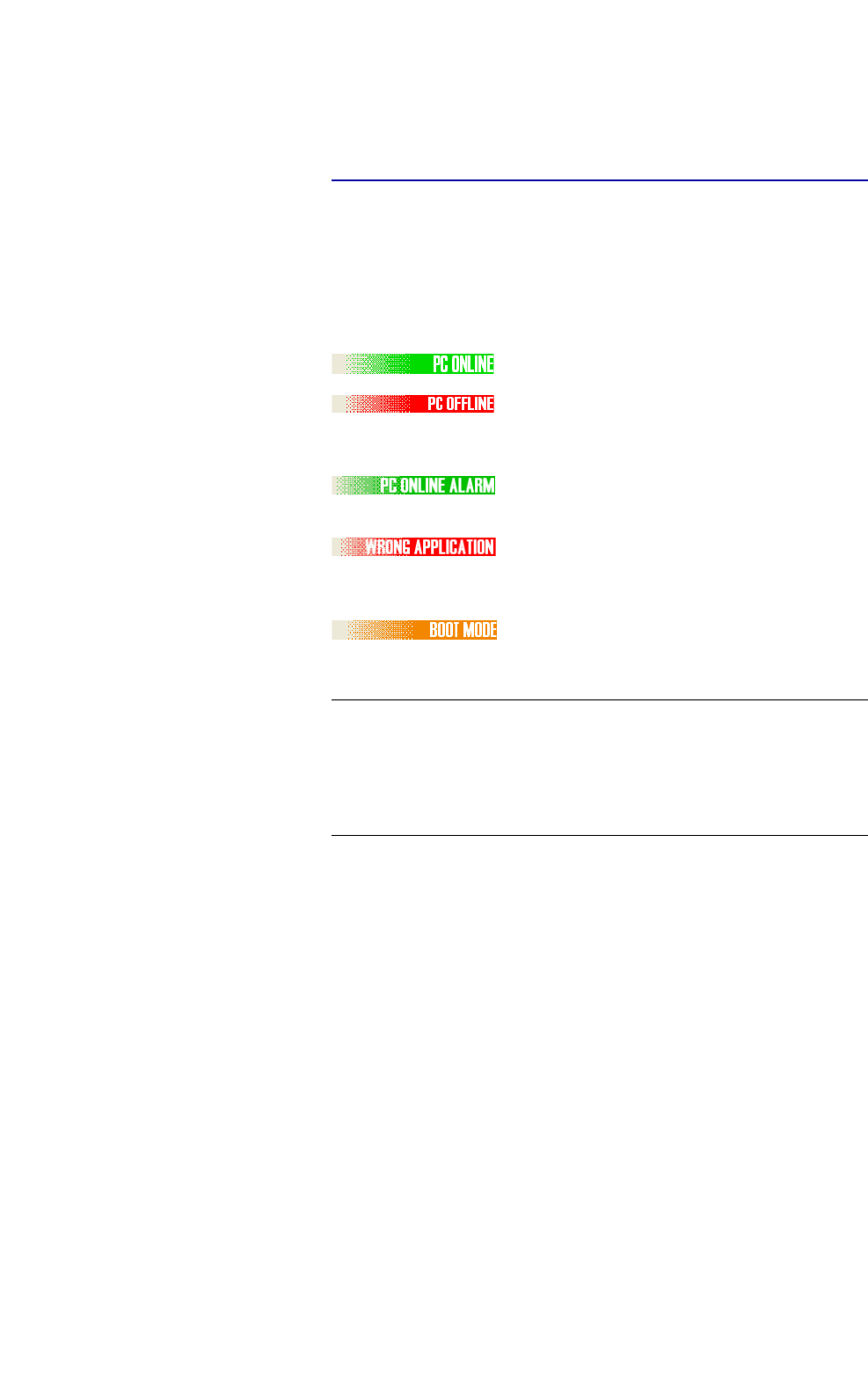

The connection status between PC and system is displayed in the upper right
corner of the window:
PC ONLINE: Connection is okay.
PC OFFLINE: Connection with PC is faulty
Following further status messages are possible:
PC ONLINE ALARM:
see System Monitor
WRONG APPLICATION:
You are using the wrong software, e.g. for
MAGIC AC1 XIP.
BOOT MODE: There is no valid firmware on
the system. Please execute a firmware
download (see CHAPTER 5.8.4, Page 87).
NOTE
If the connection is faulty, please check the following points:
– External power supply of the system is plugged in (display available)
– LAN or serial 1:1 cable is connected with PC and system
– Correct IP Address and Port are selected (if LAN interface is used)
– COM port and correct baud rate are selected in the software (if RS232 in-
terface is used)
