Putting the system into operation
3.6 Applications
Below you will find some example applications with MAGIC TH2plus.
3.6.1 MAGIC TH2plus with PC and Keypad control
In the following drawing you can see MAGIC TH2plus controlled with a PC
connected via LAN and the MAGIC TH2
plus PC Software. A second work-
place can access the system via a MAGIC TH2plus Keypad that is directly con-
nected to the telephone hybrid. Both users have their own Pretalk lines. The
Screener uses a headset that is directly connected to the MAGIC TH2plus. The
Presenter’s Pretalk line is implemented via the mixing console. In the confer-
ence mode the ON AIR caller signals are available at the Audio output as
mixed signal. A recorded Audio signal or the On Air input Audio signal can
be used as Hold Signal.

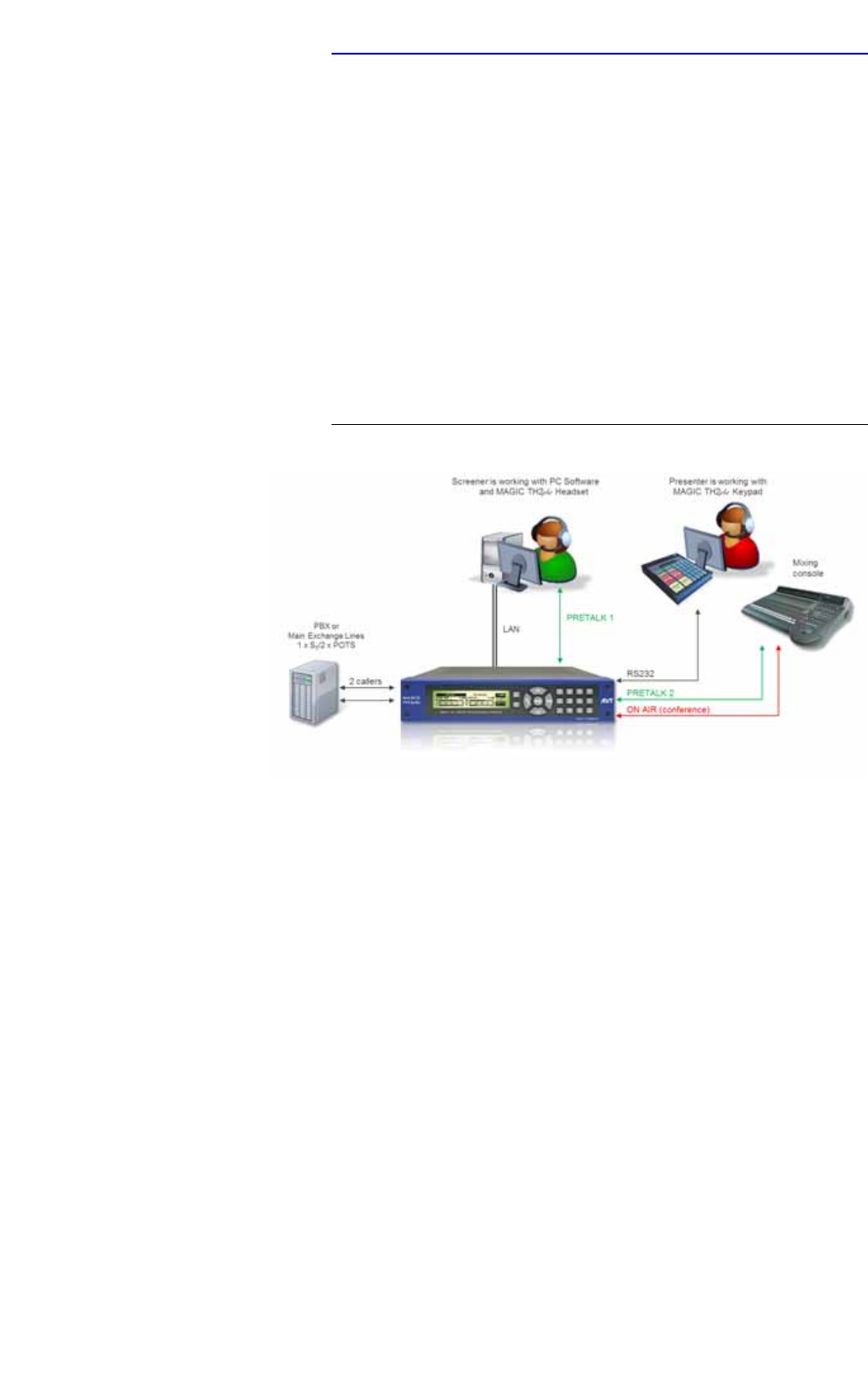

FIG. 12 APPLICATION: PC AND KEYPAD CONTROL
