Putting the system into operation

3.3 Earthing of the system

For EMC reasons an earthing via the earthing screw of the system must be car-

ried out in either case.

3.4 Operating elements on the front side

The system has an illuminated graphical display with a resolution of 160 x 32

Pixels and 21 operating buttons.

On the right next to the display there are two softkeys whose current func-

tions are indicated on the display. In the middle there are two buttons for nav-

igation (selection upwards/downwards), two buttons for accepting/drop-

ping calls as well as an

button. The numerical pad supports in addition to

the numericals

0...9

also the ’

’and ’

’button. For entering text the numerical

pad can also be used as a normal keypad.

The operation is similar to standard mobile phones.

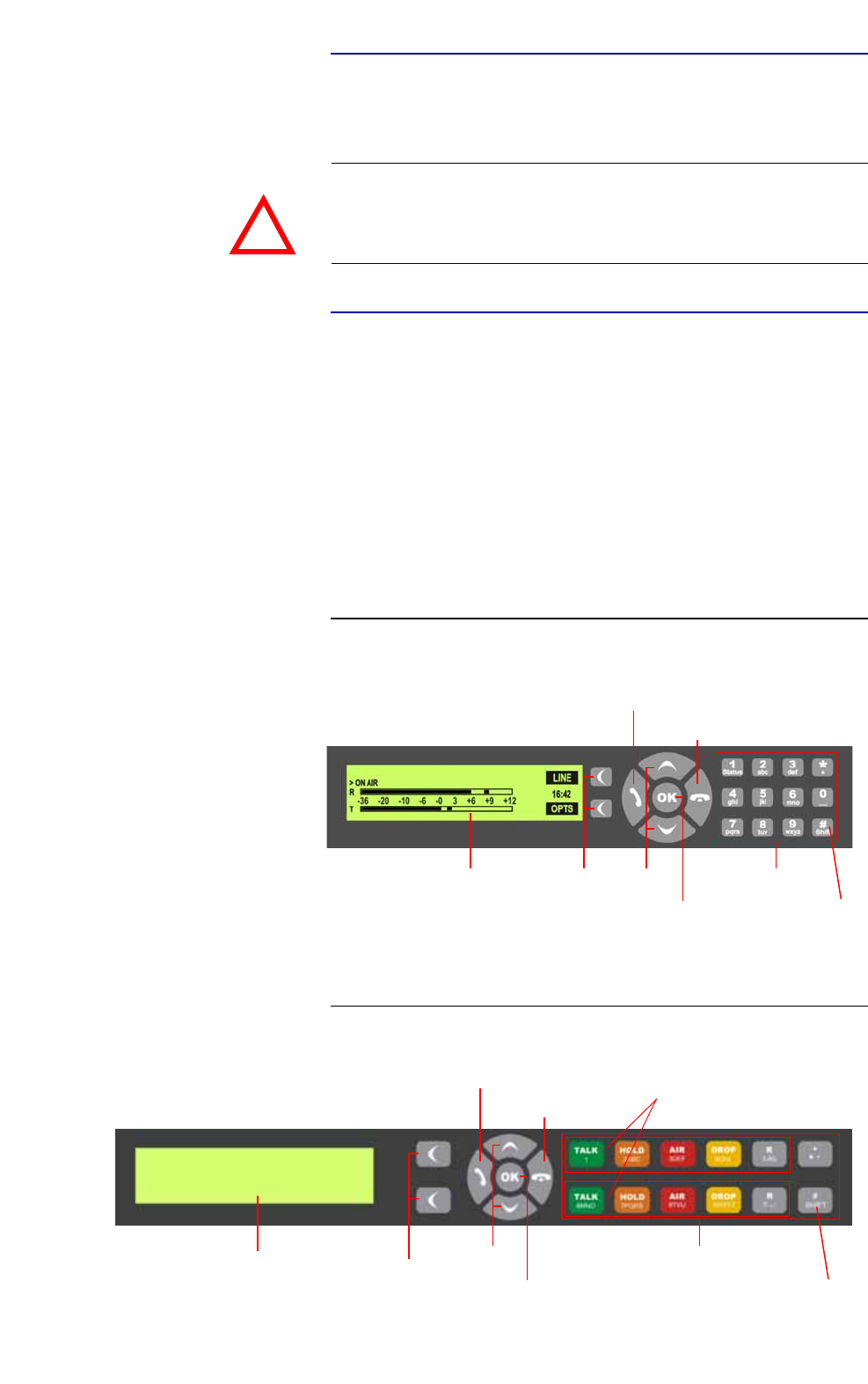

FIG. 4 OPERATING ELEMENTS ON THE MAGIC TH2PLUS FRONT SIDE

FIG. 5 OPERATING ELEMENTS ON THE MAGIC TH2PLUS RM FRONT SIDE

ATTENTION Earthing

A lacking earthing can cause functional deficiencies within the unit.

Softkeys Cursor

keys

Initiate call/

Accept call

Drop/

Lock Line/

Keypad for dialling/

Text entry

Channel

Shift

Confirm

entry/

Graphical

display

Status window

Main Menu

Softkeys

Cursor
