1.Brief Introduction
1.1 Overview

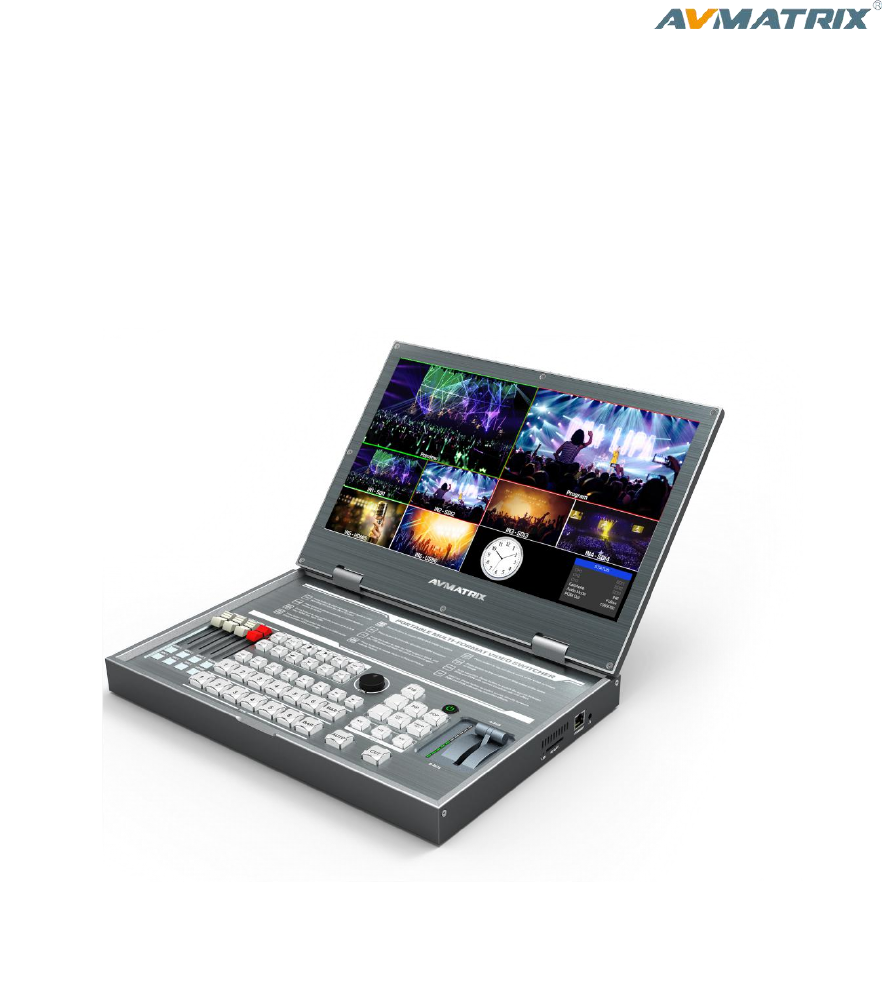

PVS0615 is an all-in-one 6-channel video switcher that allows video switching, audio mixing, and video
recording. The unit integrated a 15.6” LCD monitor which can be used in wide variety of venues for events,
seminars, etc.
1.2 Main Features
 Portable All-In-One design with 15.6 inch FHD LCD display

6 channel inputs: 4×SDI and 2×DVI-I/HDMI/VGA/USB player inputs
 3×SDI & 2×HDMI PGM outputs, 1×HDMI multiview output

SDI output 3 is AUX output, can be selected as PGM or PVW

Input format auto-detected and PGM outputs select-able

Luma Key, Chroma Key for virtual studio
 T-Bar/AUTO/CUT transitions
 Mix/ Fade/ Wipe transition effects

PIP & POP mode size and position adjustable
 Audio mixing: TRS audio, SDI audio and USB media audio

Support record by SD card, up to 1080p60
