User's Manual

Note:

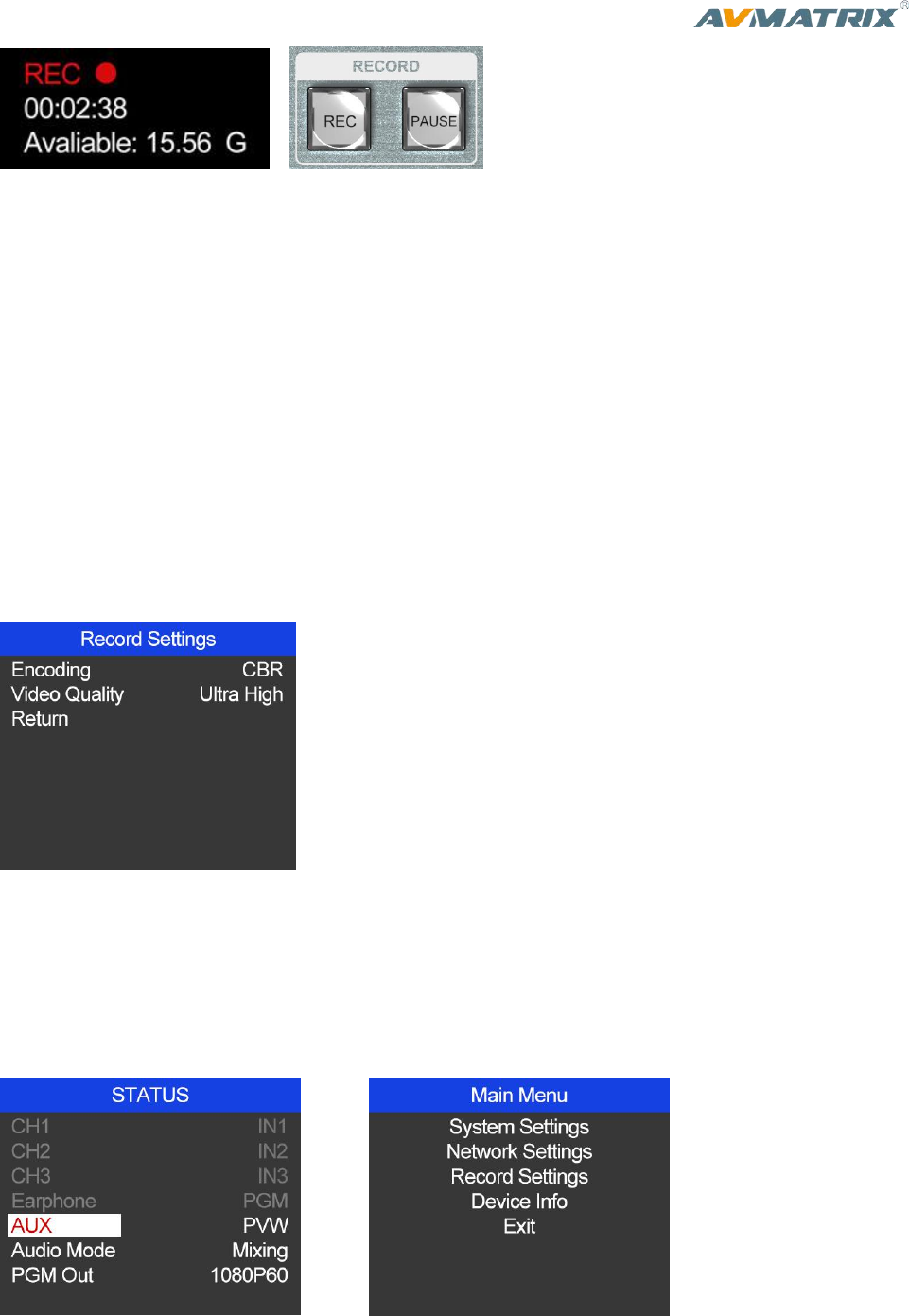

1. The record file will be saved to SD card only after pressing the REC button to stop recording. Otherwise,

the record file might be corruption.

2. In case the switcher is power off during record, the record file might be corruption.

3. If you want to change the PGM output resolution during recording, please stop recording and save the

file first, then new record the video in new resolution. Otherwise, the record video files in SD card will be

abnormal.

4.7.4 Recording Settings

Entering into the recording settings in main menu, and set the encoding format of the recording between

VBR and CBR. User can also choose the video recording quality they need , there is Ultra High, High,

Medium, Low for choice.

5. Main Menu Setting

When STATUS menu is not selected, press the MENU button to enter into main menu directly. In case

one of the item is selected(see below), rotate the MENU button rotate anticlockwise to exit the choice,

then press the MENU button to enter into main menu.
