A-16D Pro A-Net Distributor User Guid
e
A-Net
A-Net and DC Power Output
Thru
In
1 2 3 4 5 6 7 8
PRO
A-Net
Power
A-Net
A-Net and DC Power Output
Thru
In
1 2 3 4 5 6 7 8
PRO
A-Net
Power
A-Net
A-Net and DC Power Output
Thru
In
1 2 3 4 5 6 7 8
PRO
A-Net
Power

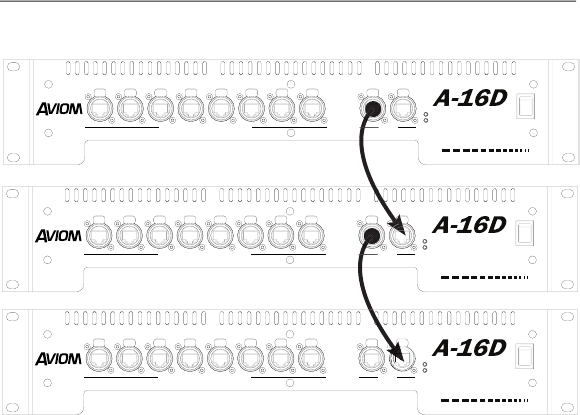

The example shows three A-16D Pro Distributors connected in a daisy
chain. This provides twenty-four powered A-Net outputs. Any number of
A-16D Pro Distributors can be connected to provide additional expansion
by connecting the A-Net Thru jack to the next Distributor’s A-Net In jack.
