System 5 Digital Audio Mixing System User Guide76
Channel Processor Order
The channel process order is accessed in eMix (Masters > Process Order) and changed for pairs of channels. The upper part is for
Multi Format Masters, and the lower part is for channels.
1 Select the process and drag it to the desired position.
2 Change the process order for all channels by altering the column on the left.
3 To reset to the default process order, right-click the channel number and select Reset Process Order.
Insert Point
Each channel can have an insert point with a send and return patched with eMix. The insert point can be anywhere among the
six processors (Delay, Meter, EQ, Filters, Dynamics, and Fader) and can be considered as another processor.
The insert point can be switched in/out using the Ins In key next to the Strip’s function keys or from Input knobset page 3.

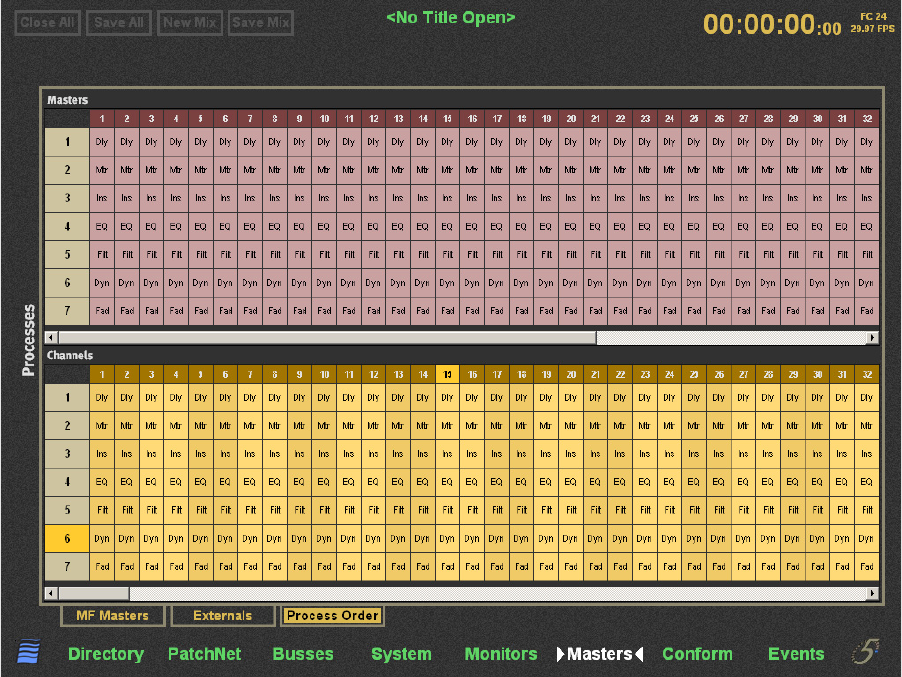

Channel processor order in Masters tab of eMix
