System 5 Digital Audio Mixing System User Guide60

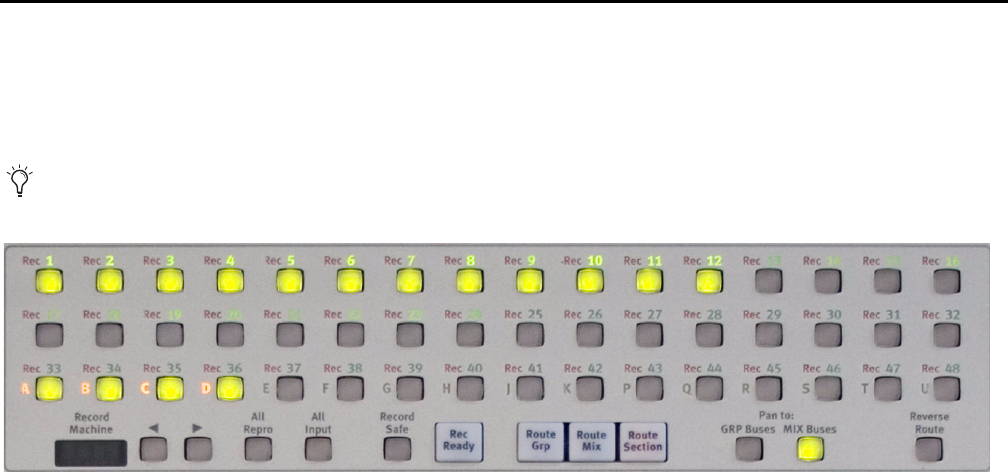

Bus Routing Panel
This panel shows the Group and Mix Bus routing for channels assigned to the Center Strip. The Rec Ready, Route Grp, Route Mix,
and Route Section switches, on the bottom of the panel, determine what is displayed and controlled. These switches intercancel:
only one can be lit and active at a time. The Pan To: GRP Busses and MIX Busses keys switch pan in/out for the Group and Mix
Busses.
Route Grp
• All 48 switches indicate Group Bus routing.
• The green number LEDs light to indicate the available busses.
• The switches light to show that the Center Strip channel is routed to that Group Bus.
Route Mix
• All 48 switches indicate Mix Bus routing.
• The green number LEDs light to indicate the available busses.
• The switches light to show that the Center Strip channel is routed to that Mix Bus.
Route Section
This is the default mode of operation. The top two rows indicate Group Bus routing. The bottom row is for the 16 Mix Busses.
Rec Ready
This mode supports track arming up to 48 recorder tracks.
The Reverse Route switch is not currently operational.
Bus Routing Panel
