User guide

Chapter 5: CM402T Expanded Channel Module 57
Channel Select Panel
The Channel Select Panel provides easy physical access to any channel or Control Group in your System 5 configuration. It de-
faults to displaying the first 32 channels, each with a four-character LCD, ON/Solo, and Channel Select keys.
•The Page keys display additional channels in groups of 32. If the Scroll key is lit, the Page keys display one new row of channels
(eight) instead of 32.
• The right key beneath each channel’s LCD assigns that channel, Control Group, or Master to the Center Strip, replacing the
channel in the active layer (Swap or Main). This key functions identically to a CM408T Strip’s Wave key.
•The Number key toggles between displaying the channel, Control Group, or Multi Format Master number (key is lit) and the
name.
•The Group key toggles between displaying channels and Control Groups (key is lit).
•The Masters key toggles between displaying channels and Multi Format Masters (key is lit).
The global ON and Solo keys on the bottom of the panel determine whether the left key on each channel’s controls performs an
On/Off or Solo function. The ON and Solo keys intercancel: they cannot be lit simultaneously:
•If ON is lit, the key turns the Control Group or Channel On/Off.
•If Solo is lit, the key Solos the Control Group or Channel.
• If both are unlit, the key has no effect.

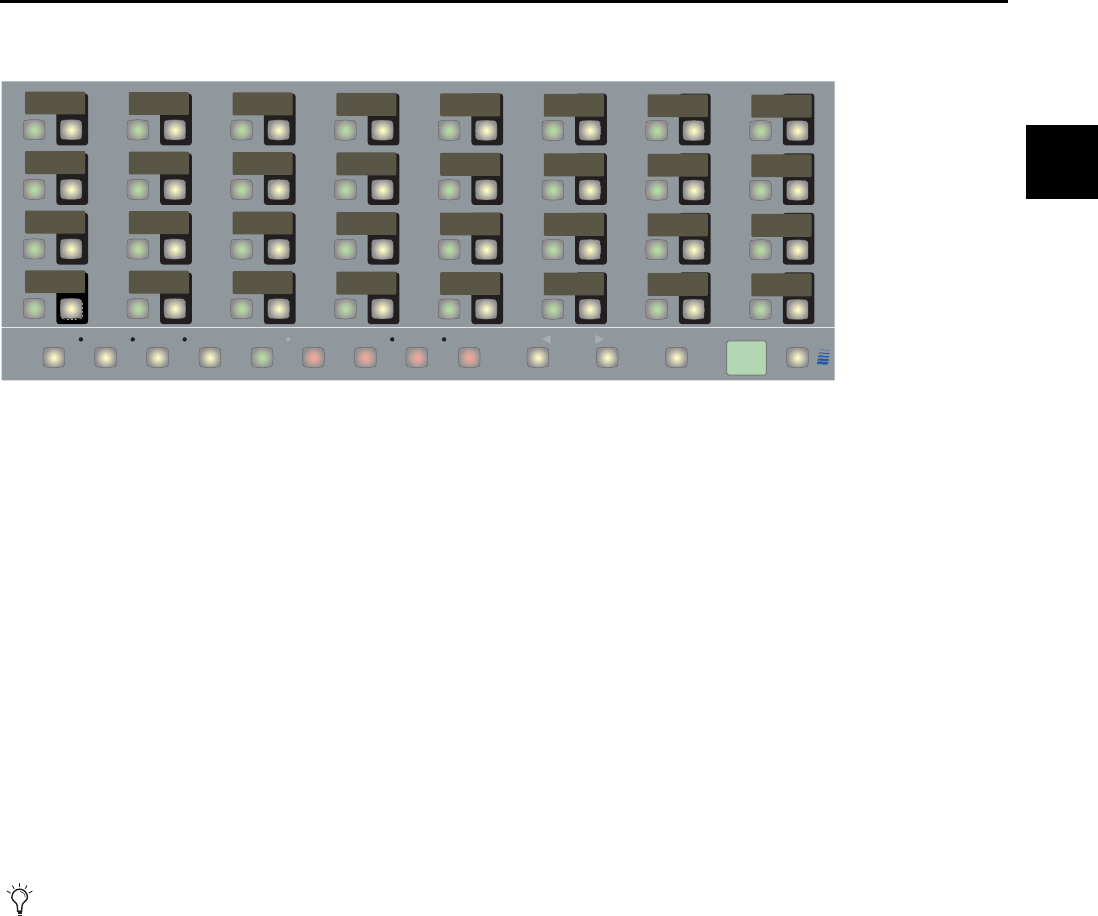

Channel Select Panel
The Wave key at the far right of the Channel Select Panel is not functional.
Number Group Master Strip Copy PasteClear
ON
sol oPageScroll
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sol o
sw ap
mstrs
C1
C9
C17
C25
C2
C10
C18
C26
C3
C11
C19
C27
C4
C12
C20
C28
C5
C13
C21
C29
C6
C14
C22
C30
C7
C15
C23
C31
C8
C16
C24
C32
