Chapter 4: CM401T Master Section 53
Master Section Meters
The TFT screen above the center section shows two meters. The upper meter automatically shows the selected monitor output for-
mat. For example, if the Control Room monitors Mix Bus A and it is a 5.1-channel format, the meter automatically displays 5.1
channels.
The lower meter automatically displays whatever is currently assigned to the Bus Master Strip: Aux, Mix, or Group Masters, Mon
A, B, C, D, or Solo Master. The meter displays the eight meters corresponding to the Bus Master knobset. If there are more than
eight masters, use the keys on the Bus Master Strip to change pages. For example, if Group Bus Masters 9–16 are on the knob-
set, the meters display these automatically. Press the Mon A–D Source or the Solo Ctrl switches to meter these signals on the lower
meter.

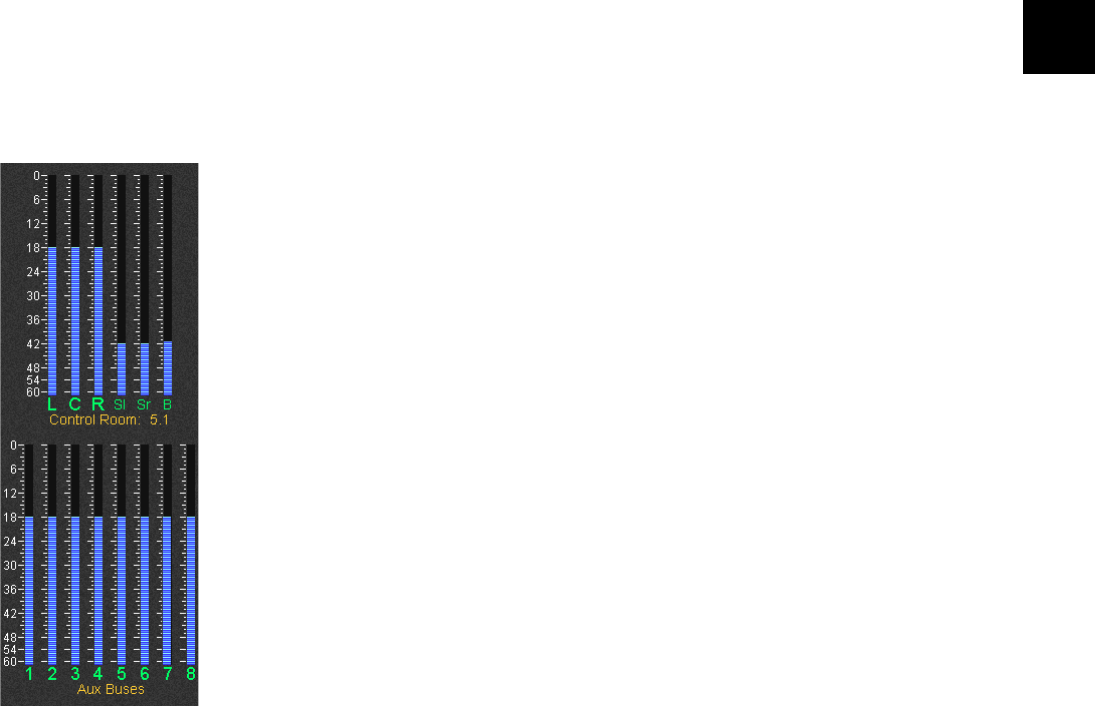

Master section meters showing 5.1-channel CR and Aux Busses 1–8
