Chapter 4: CM401T Master Section 51
Meters
The System 5 meters are displayed on the TFT screen at the top of each Strip. Each Strip’s meter can be independently set and can
measure:
• Channel: The fader, Swap, Main, or any channel, even one not assigned to that Strip can be metered. There is an option to dis-
play two meters that track different information. When displaying one meter, the dynamics gain reduction is shown to the
right of the channel meter (see figure below).
• Group, Mix, Aux: Any Group, Mix, or Aux Bus.
Meter Presets and Configurations Panels
From the Main Panel, press the Meters switch to display the Meter Presets Panel (left figure below). Twenty four meter presets can
be stored and recalled via the Meter Presets Panel. Before creating presets, configure each Strip’s meters.

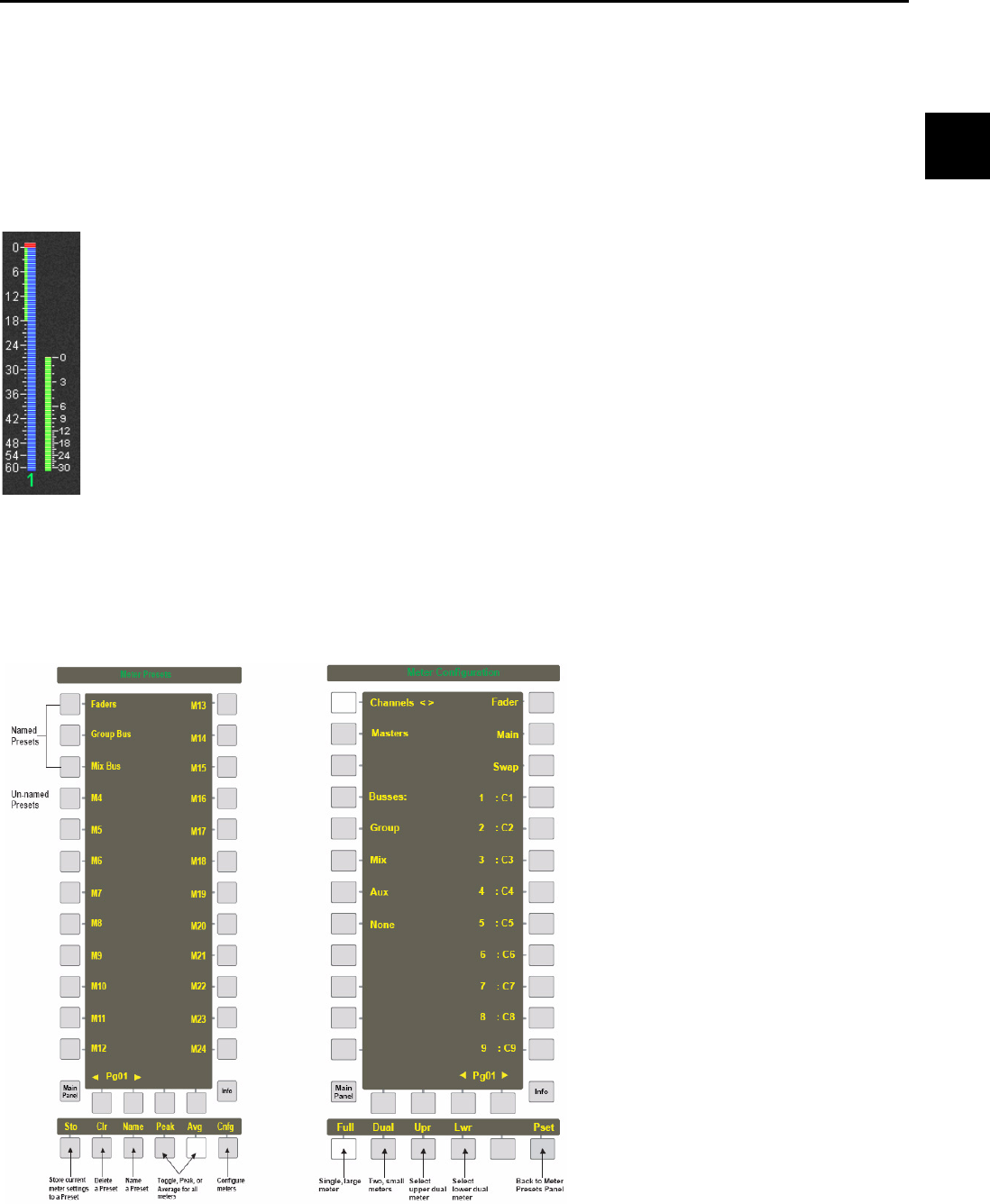

Channel meter with dynamics gain reduction meter on right
Meter Presets and Meter Configuration Panels
