Monitor Source Selection
The sources for Mon A–D and Control Room outputs are selected using the Panel Viewer. Press the Mon A–D or CR Source buttons
to display available sources (figure below shows the MonD Source Panel).
Use the keys on the bottom of the Panel to select the source type: External (CD, VTR, etc.), Aux Sends, or Mix Sections. The cur-
rent source type key lights and available sources within that type appear in the Panel. Press a key along the sides of the Panel to
select a source. The active source key lights and the name appears in the LCD for that monitor output.
Sum or Intercancel
The Sum key is inactive (not lit) by default, which means that selecting a new source automatically cancels the previous one.
When the Sum key is lit, multiple sources can be selected simultaneously. The Sumsymbol appears to the left of the first source se-
lected in the LCD in the monitor controls. After selecting multiple sources, pressing the Sum key again (so it is not lit) does not
deselect theses sources until a new source is explicitly selected.
Follow Control Room Monitors
Activate the FlwCR key so the Mon A–D outputs follow the source selected for the Control Room monitors.

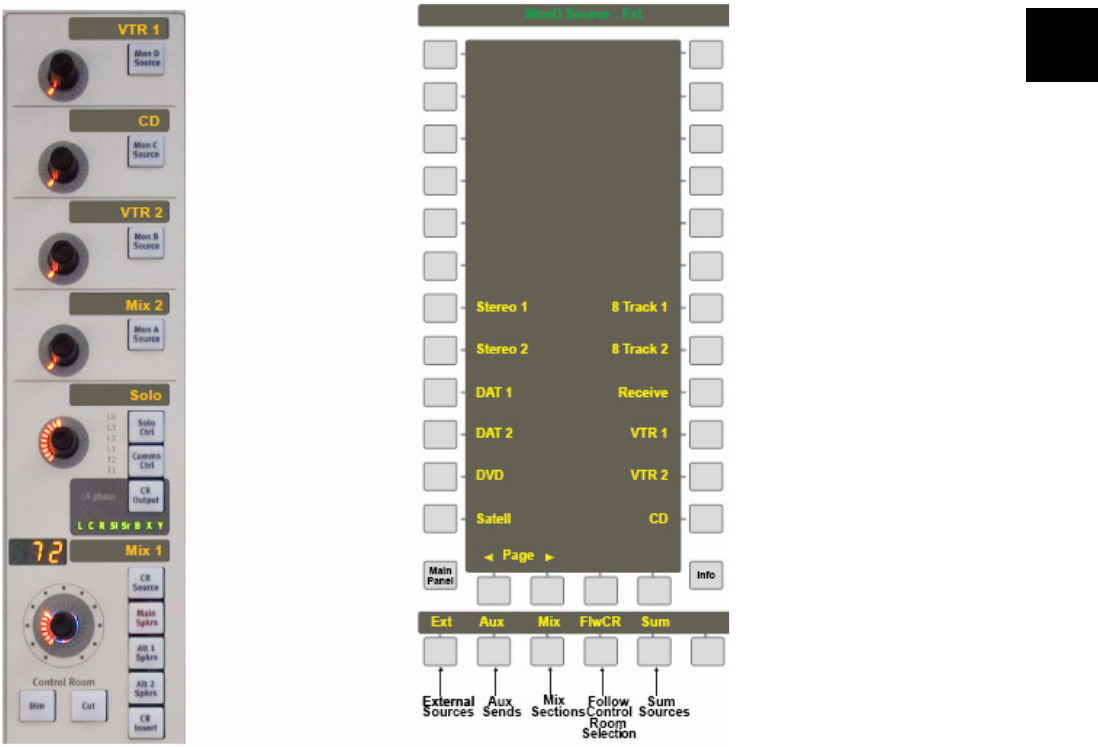

Monitor Controls and MonD Source Panel
