System 5 Digital Audio Mixing System User Guide30
10 Select the new sample rate and click the Apply button to affect the change.
11 Click OK to close the dialog.
12 Power off the control surface and DF66(s) and reboot.
Changing the Number of MADI Channels
The MADI ports on the DSP Line Cards are set at the factory to 56 channels. To connect to a 64-channel device, the Line Card
settings can be changed in the Control Panel.
To change the number of MADI channels:
1 Display the Control Panel (see preceding page).
2 Select the DF66 tab.
3 Select ID1 then click the Properties button.
4 Click the MADI tab.
5 Find the port on the Line Card that the 64-channel MADI device is connected to, and change its setting to 64.
6 Click Apply to affect the change.
7 Click OK to exit the dialog.
8 If the system has a backup DF66 core, select ID1-A from the DF66 tab.
9 Click the Properties button.
10 Click the MADI tab and repeat steps 5–7.
To change to a Mixer Model not displayed in the eMix System Window, exit eMix and run the MMPass application (accessible
from the Desktop). From the MMPass program, you can enable a Mixer Model so it shows up in the eMix System Window. You
can also activate a Mixer Model so it becomes the active Mixer Model when eMix relaunches. We recommend selecting a Mixer
Model that matches your DSP hardware configuration.

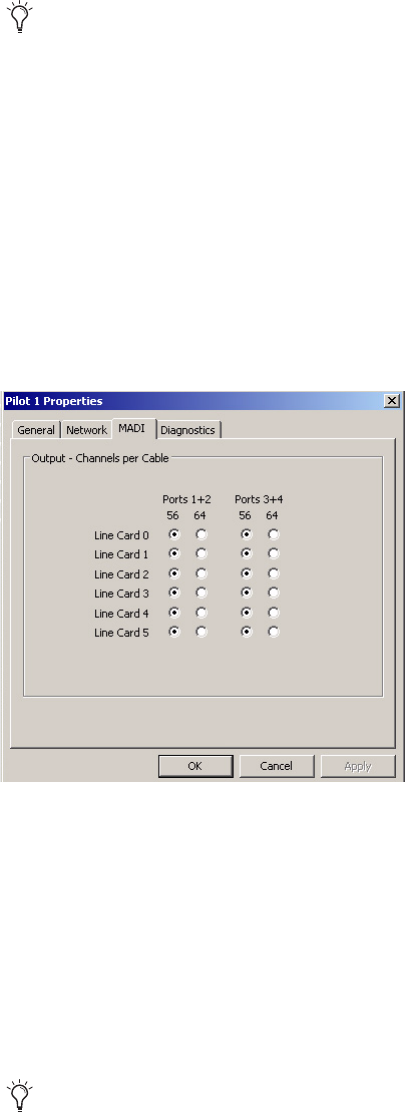

DF66 Properties MADI tab
Changing the MADI channel setting on a Line Card affects its MADI ports in pairs. 56-channel MADI devices, such as the FC726
Format Converter, are not compatible with the Line Card at its 64-channel setting. This operation reboots the DSP Pilot app. If
eMix is running, it will restart to synchronize.
