System 5 Digital Audio Mixing System User Guide26
PatchNet Presets
Patches can be stored in PatchNet presets. The presets can be recalled from PatchNet, the Patches menu on the CM401T, or from
the Event system. Presets are not specific to the Title or Mixer Model and are stored in the C:\eMix\system\RoutePresets.dat file
on the System Computer. Preset recall is recorded in eTracer (logging).
• If one source and more than one destination is selected, the preset is stored as a mult.
• If the number of sources and destinations selected is not the same, a dialog appears stating Cannot Store Patch Presets.
• If only destinations are selected, they will be cleared regardless of what is patched.
• Storing a patch preset with nothing selected stores patches that are there but will not store empty patches.
Busses
Click the Busses tab at the bottom of the eMix window to display the Busses window. At the bottom left of the window, click ei-
ther the Group or Mix buttons to configure the Group or Mix busses, respectively (figure below shows the Mix busses; next figure
shows Group busses). Group and Mix busses differ in two ways:
• There are 16 Mix sections but only one set of Group busses.
• Mix sections have associated recorder playback returns.

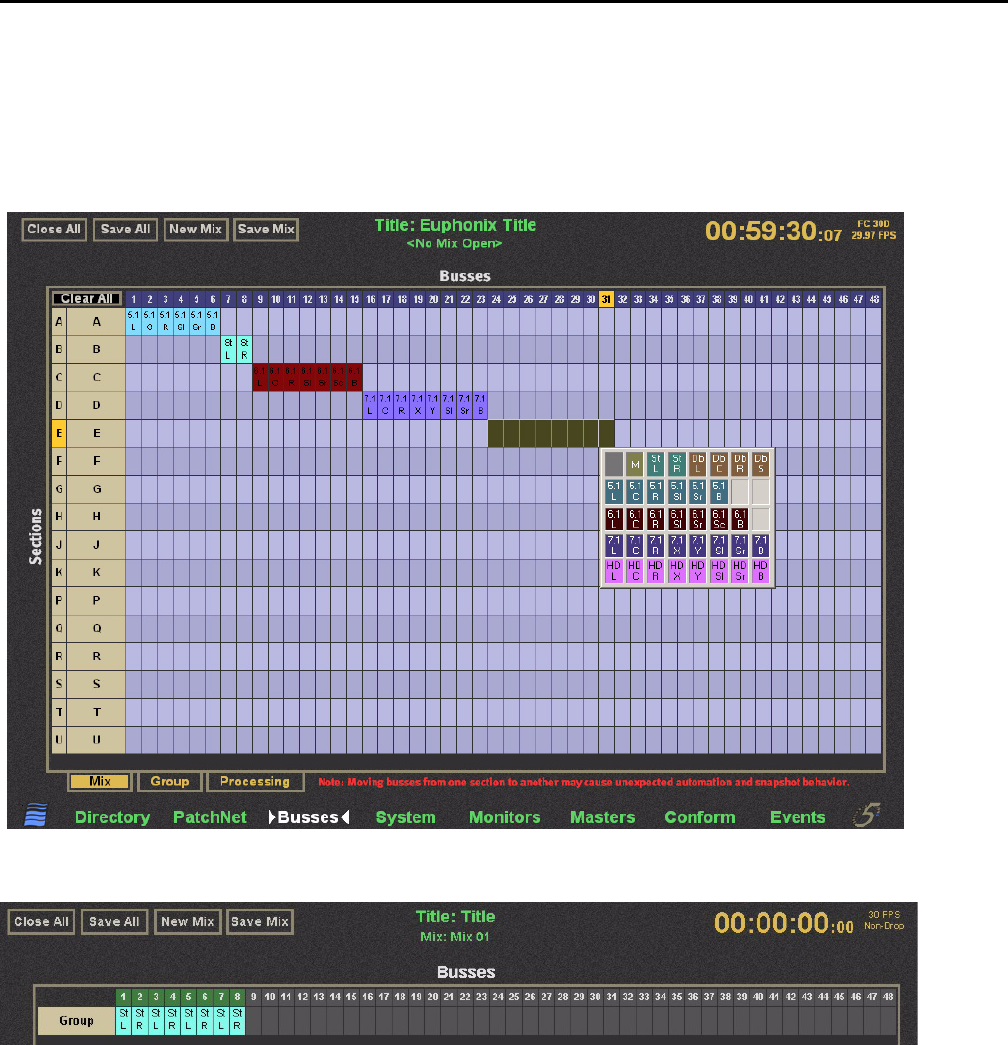

Mix Bus Window with law palette
Group Bus Window
