Chapter 3: eMix Application 25
Mix Bus Send/Return

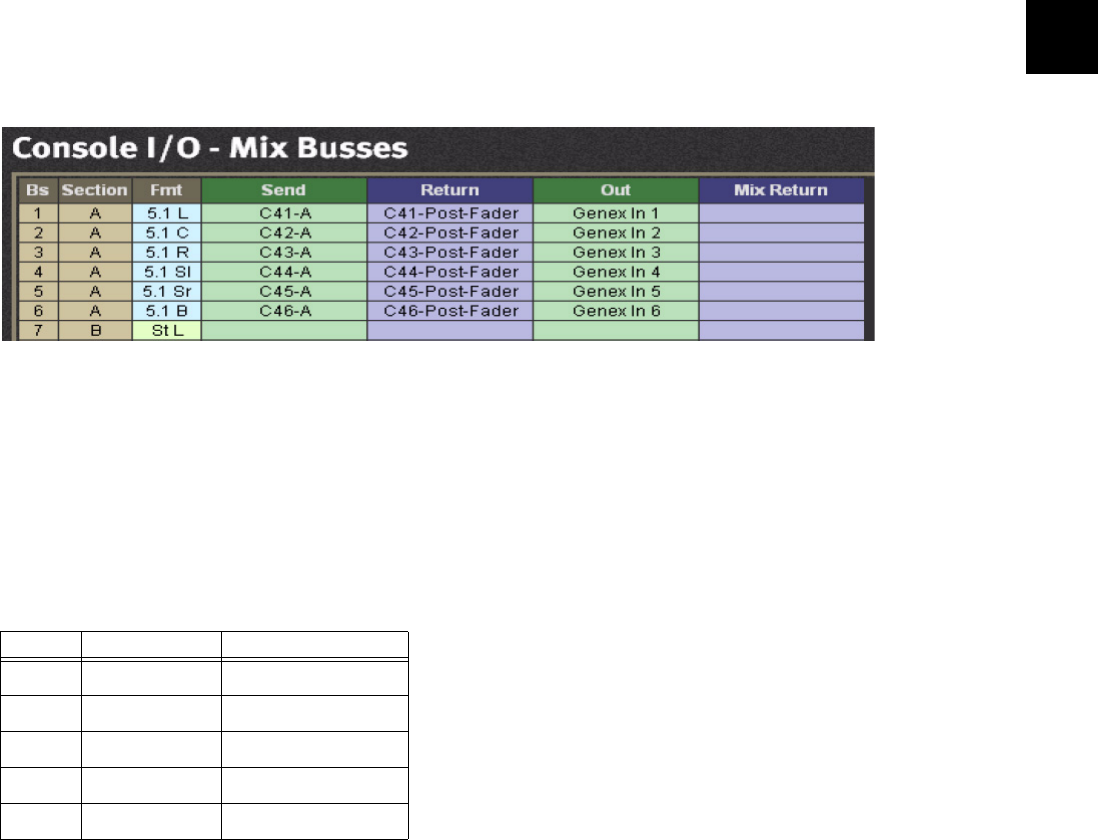

Click the Console I/O category, then click the Mix Busses sub-category. Each mix bus has a send and return. In the figure below,
the first six sends (a 5.1-channel mix section) are routed to channels 41–46 A inputs. The insert is switched in/out from the Bus
Masters Config Page (see “Bus Master Inserts” on page 97).
For every Mix Section, there is a corresponding return in the same format that supports patching the Mix Section recorder output
back into the console. The Mix Section Return can be routed to the monitors from the Mix Section page in the CR Source Panel
(see “Control Room Monitor Controls” on page 42).
Monitor Patching
The monitor outputs are automatically routed to the analog patch unit supplied with System 5 and are ready to be normalled to
the speaker inputs. The monitor feeds are also available within PatchNet for routing to other destinations.
Click on the Console I/O category and the Monitor Busses sub-category. This window shows all 22 monitor feeds:
The Cascade inputs support direct bus injection prior to the insert point into all monitor signal paths.
Solo Bus and Utility Patching
The Solo Busses sub-category in Console I/O supports custom patching into the stereo Solo Bus.
The Utility Sources sub-category includes the Oscillator output. The Utility Destinations sub-category includes the Slate In which
must be patched to the Talkback mic feed from the Monitor Interface.
Talkback Signal Patching
The talkback mics are wired to the MC524 Monitor Controller and amplified to produce a single talkback signal. This analog sig-
nal must be fed into the system through an analog-to-MADI converter.
To send talkback to the busses, this signal must be patched to the Slate Input in the Utility Destinations subcategory of the Console
I/O category. Note the analog-to-MADI converter input the talkback signal has been patched to and connect it to the Slate Input.
Mix Bus Send and Return
Monitor Busses Format
1–8 Control Room
L, C, R, Sl, Sr, Bm, X, Y
9–16 Mon A
L, C, R, Sl, Sr, Bm, X, Y
17–18 Mon B
L, R
19–20 Mon C
L, R
21–22 Mon D
L, R
