System 5 Digital Audio Mixing System User Guide24
Patch the multitrack returns into channels 1–24:
1 Click on the Sources category.
2 Click on the Frame 1-3 sub-category.
3 Drag through the first 24 cells in the Frame1-3 column.
These cells are highlighted and their names appear in the Sources column in the Selected: area.
4 Select the Console I/O category.
5 Select the A and B Inputs sub-category.
6 Drag through the first 24 cells in the A Input column.
These cells are highlighted and their names appear in the Destinations column in the Selected: area.
7 Click the Patch button to make the connection.
The sources and destinations appear in the A Input and Name columns, respectively. The sources and destinations are cleared
from the Selected: area.

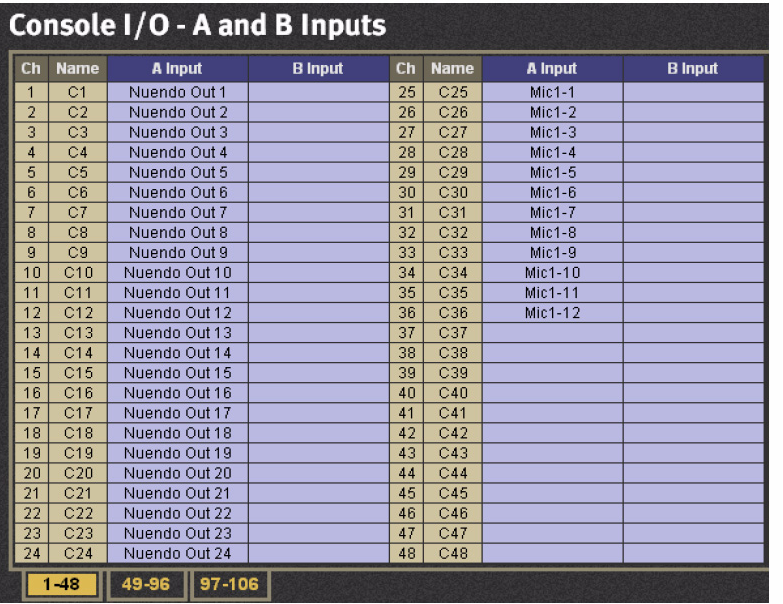

After connecting the 12 mics and the R-1 returns, the Console I/O - A and B Inputs Window is shown below.
Nuendo and mics patched
