System 5 Digital Audio Mixing System User Guide22
Patching Example: 12 Mics Into Channels 25–36
To select the Sources:
1 Click on Sources from the four PatchNet categories.
2 Click on Mic-Line 1 from the sub-categories.
This displays all inputs in the center of the window from the first Mic-Line Interface. The Mic-Line Interface is connected as
part of the initial studio setup.
3 Select Mic1-1–Mic1-12 from the Mic-Line column by clicking and dragging through the cells.
These entries are highlighted in green in the figure above. These sources appear in the Sources column of the Selected: area.
If there were more than 32 sources, additional tabs would appear to the right of the 1–32 tab.
There can be:
• one source to one destination;
• an equal number of sources to destinations;
• one source to multiple destinations.
To set the destinations for the 12 mics:
1 Select the Console I/O category and the A and B Inputs sub-category.
2 Drag through the A Input column next to C25–C36 to select channels 25–36.

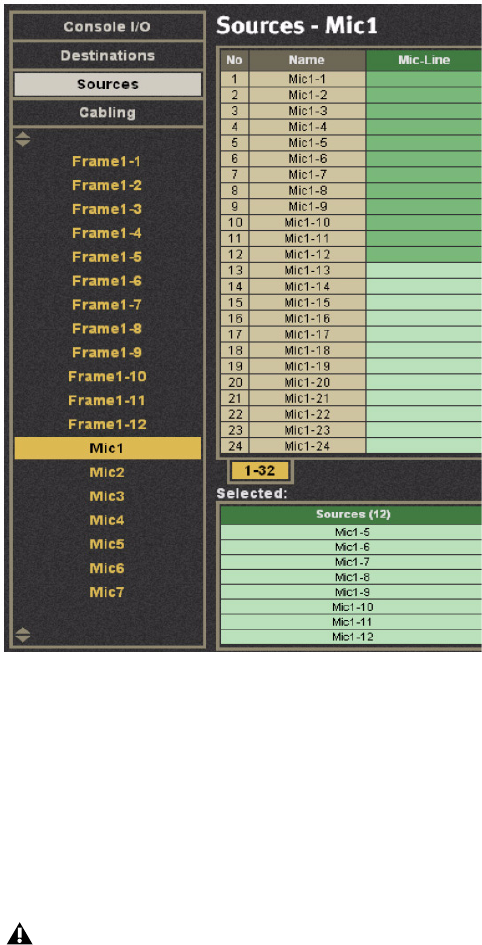

Sources Window
Multiple sources cannot be routed to one destination.
