Chapter 14: CM403 Film/Post Module (S5 Only) 171

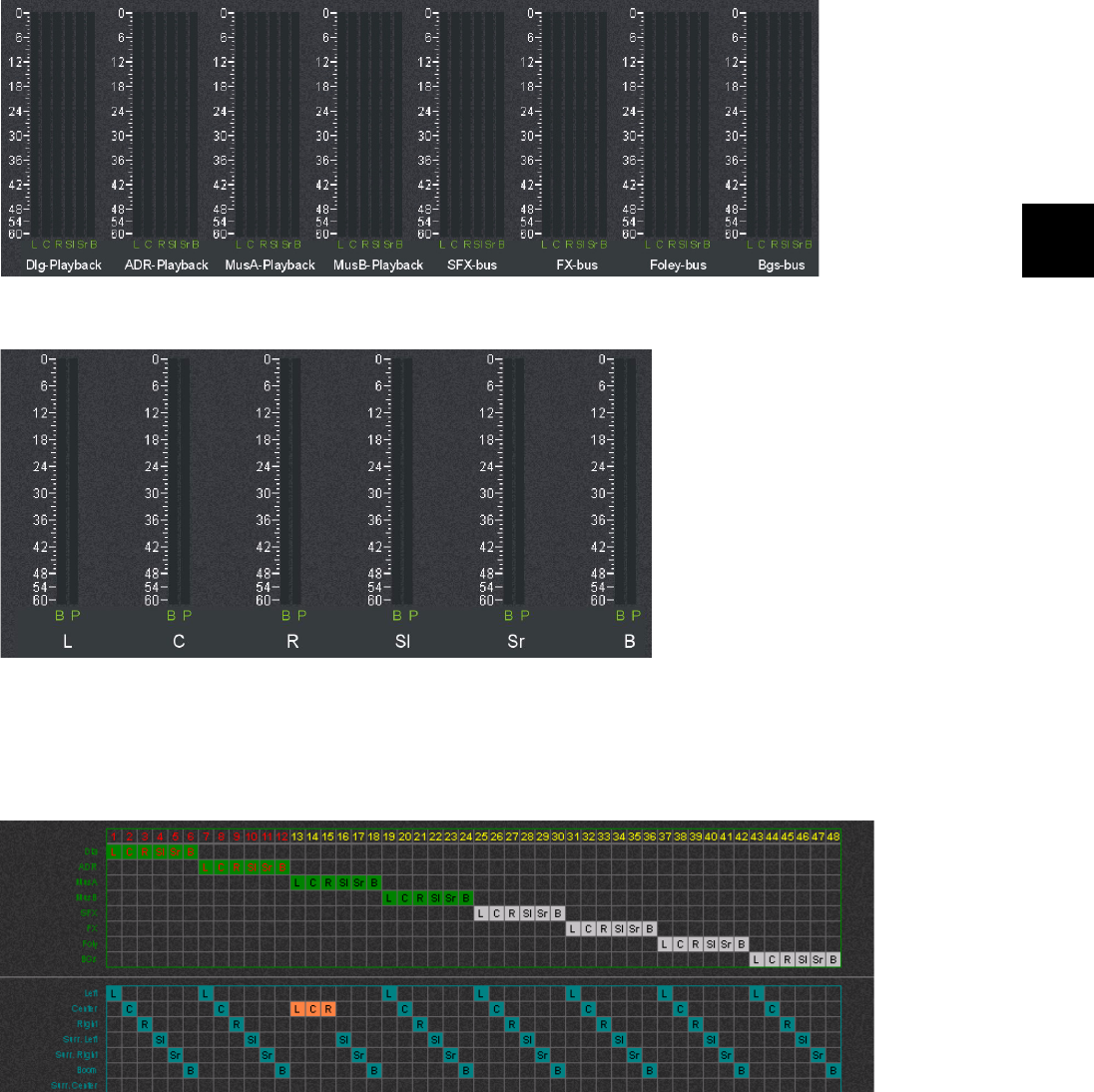

CM403 TFT Display
The TFT displays meters and an overview of the monitor bus assignments.
Metering Display
The meters track what is currently assigned to the paddles. The send and return for each bus are displayed on separate meters.
At the top level, where the paddles are assigned to the bus sections, eight meters can be displayed for each of the mix busses
within the section.
Bus/Track and Monitor Assignments Display
The lower half of the screen displays 48 mix busses across the top, the first eight bus sections down the side, and the eight speaker
(main monitor bus) outputs.
Top Level Metering Display
Bus Level Metering Display
Bus/Track and Monitor Assignments Display
