System 5 Digital Audio Mixing System User Guide166

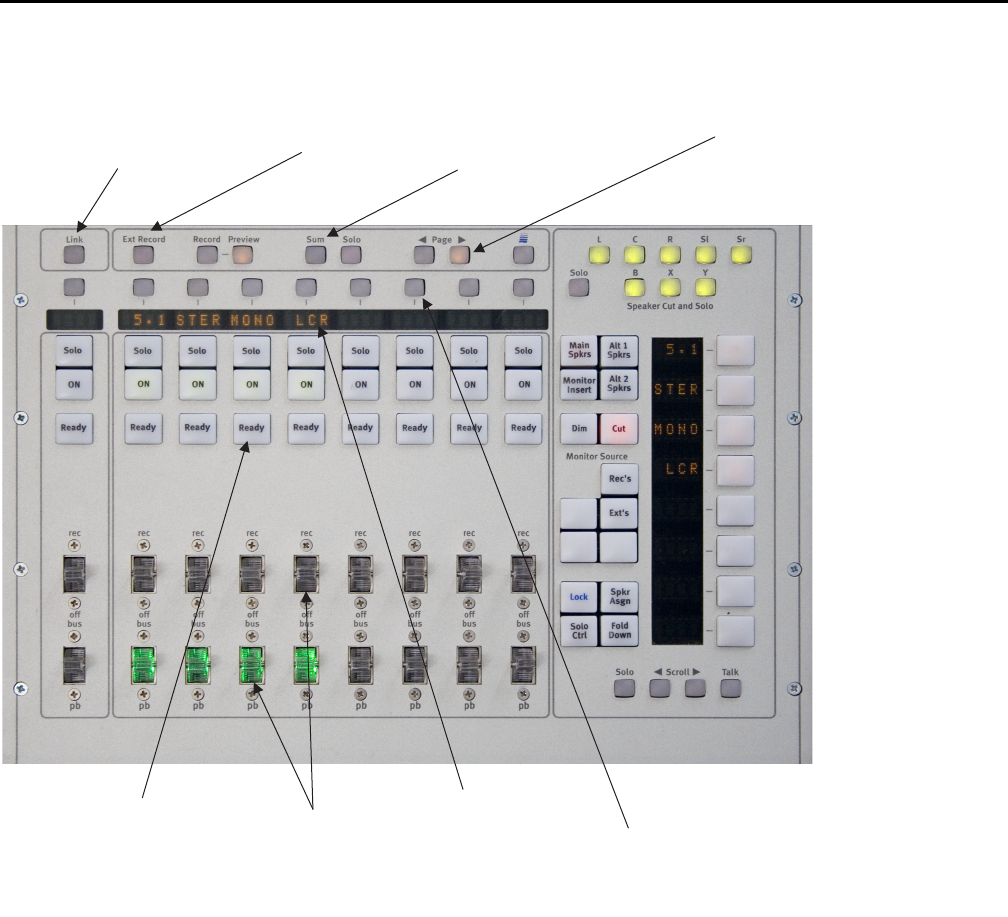

The Film Panel
The Film Panel is divided into two distinct parts: the traditional PEC/DIR panel on the left, and an additional utility panel to the
right. The right panel duplicates most of the CM401T’s monitoring and setup functions.
CM403 Film/Post Module
8 plus master RECORD
ON/OFF and BUS/PB
(playback) paddles.
Ready switch enables
Record On for selected
bus(es). Solo and On
switches for monitor inputs
assigned to selected paddle
Link allows the user
to select which bus
sections/legs are
under the control of
the master.
Ext Record switch
enables external GPI
to trigger record.
Sum switch is reserved for future
use. Solo switch lights when a
monitor matrix solo is active and
hitting the switch clears all solos.
At the top level the
displays represent the
section currently assigned
to the corresponding
paddles and switches.
A single section can be
expanded on
to the
switches and paddles by
hitting the corresponding
Exp/Sel switch.
Allows paging for more
than 8 sections (or busses-
if the section is expanded).
