Chapter 14: CM403 Film/Post Module (S5 Only) 165
Chapter 14: CM403 Film/Post Module (S5 Only)
The CM403 fulfills the requirements for a traditional PEC/Direct monitoring system for the post-production environment. It can
be used in single- and multi-operator System 5 consoles. Up to four Post Panels can be installed in a single system. The CM403’s
form factor is the same as other CM40x control modules. The CM403 contains a TFT and three same-size panels, two of which
are taken by the Film and the Dual-Joystick Panels. The Film Panel can be placed above or below the Dual-Joystick Panel. The user
can place their own motion controller or other third-party equipment into the spare third panel.

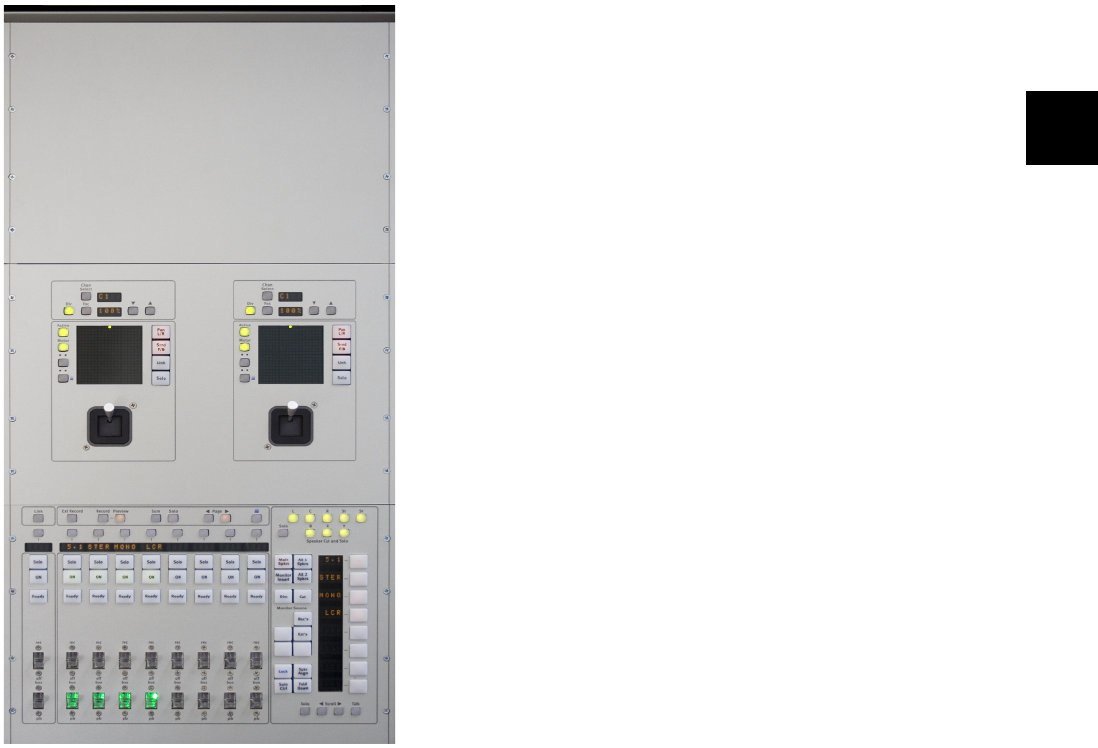

CM403 Film/Post Module
