System 5 Digital Audio Mixing System User Guide108
TT002
The TT002 is a single-port RS422 (Sony 9-pin), USB device and MMC machine controller (not a synchronizer). It replaces the
TT007, MOTU MIDI Interface, and GP132, and ships with all System Computers. It locks to a machine more quickly and simply
than previous devices and reads LTC. To control more than one machine, a Sound Master, Colin Broad RM6, or similar device is
required.
The System 5 software can auto-sense the TT002 or TT007. The setup options are done from the Machines page on the CM401T

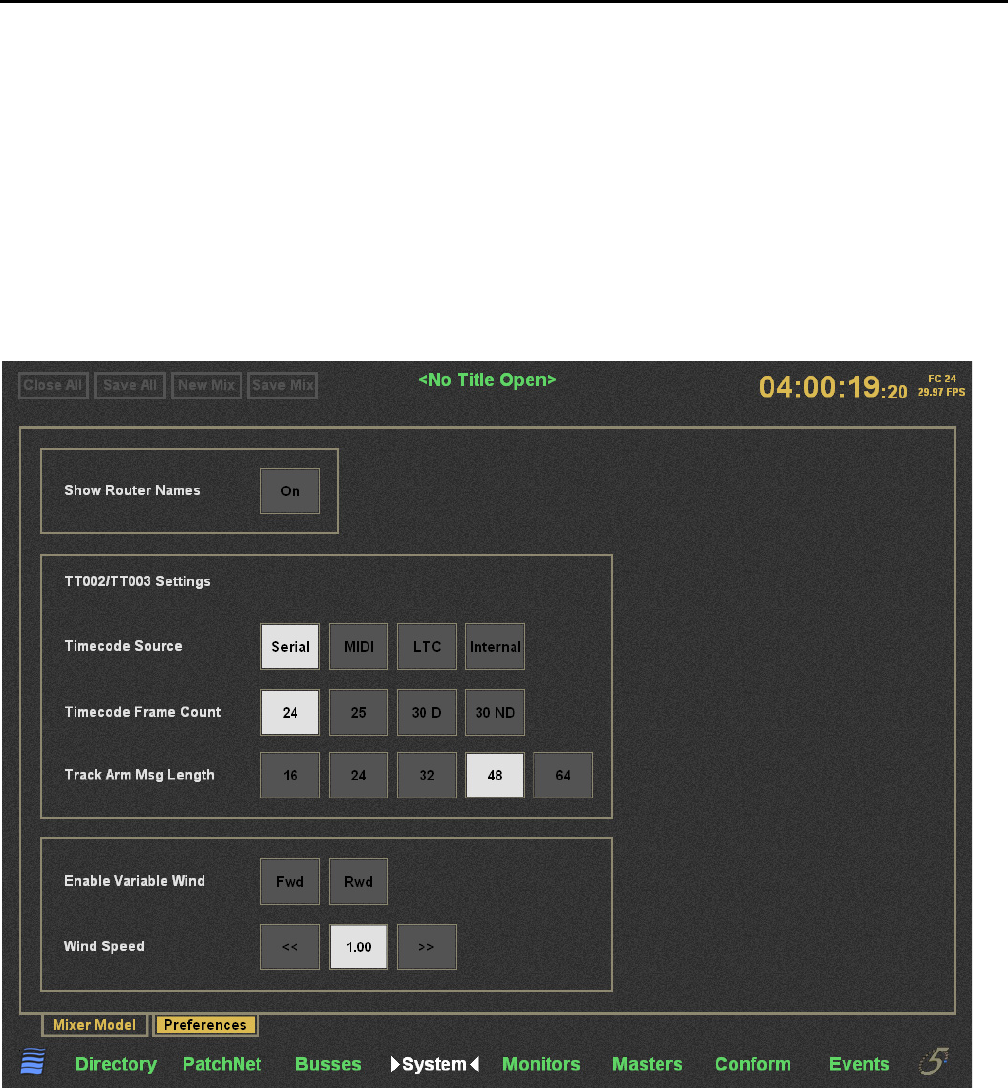

(see page 102), and the System Preferences Page (see figure below). From the System Preferences page, select the timecode source,
frame rate, track arming length, and fast forward/rewind speeds. The CM401T TFT displays the selected frame count and incom-
ing frame rate.
A TT003 machine controller is available for dual-operator System 5 configurations. It is physically different from the TT002, and
requires different firmware. An additional USB port is provided to connect the two System Computers.
Machines - Setup Panel
