System 5 Digital Audio Mixing System User Guide106
Track Arming
The Machines - Setup Panel controls track arming (see figure below), and can be displayed by pressing the Machine Setup button from
the Main Panel. The Record in Motion, Track Arm in Motion, On Transport Stop, and Arm While Stopped each have two, mutually exclusive
settings.
A single serial port of the TT002 can provide up to 64 channels of track arming. Track arming and record tally information is sent
to the console and is used to generate a true track status tally on the surface (top of CM402T and record paddles in CM403):
• flashing = armed
• solid = recording

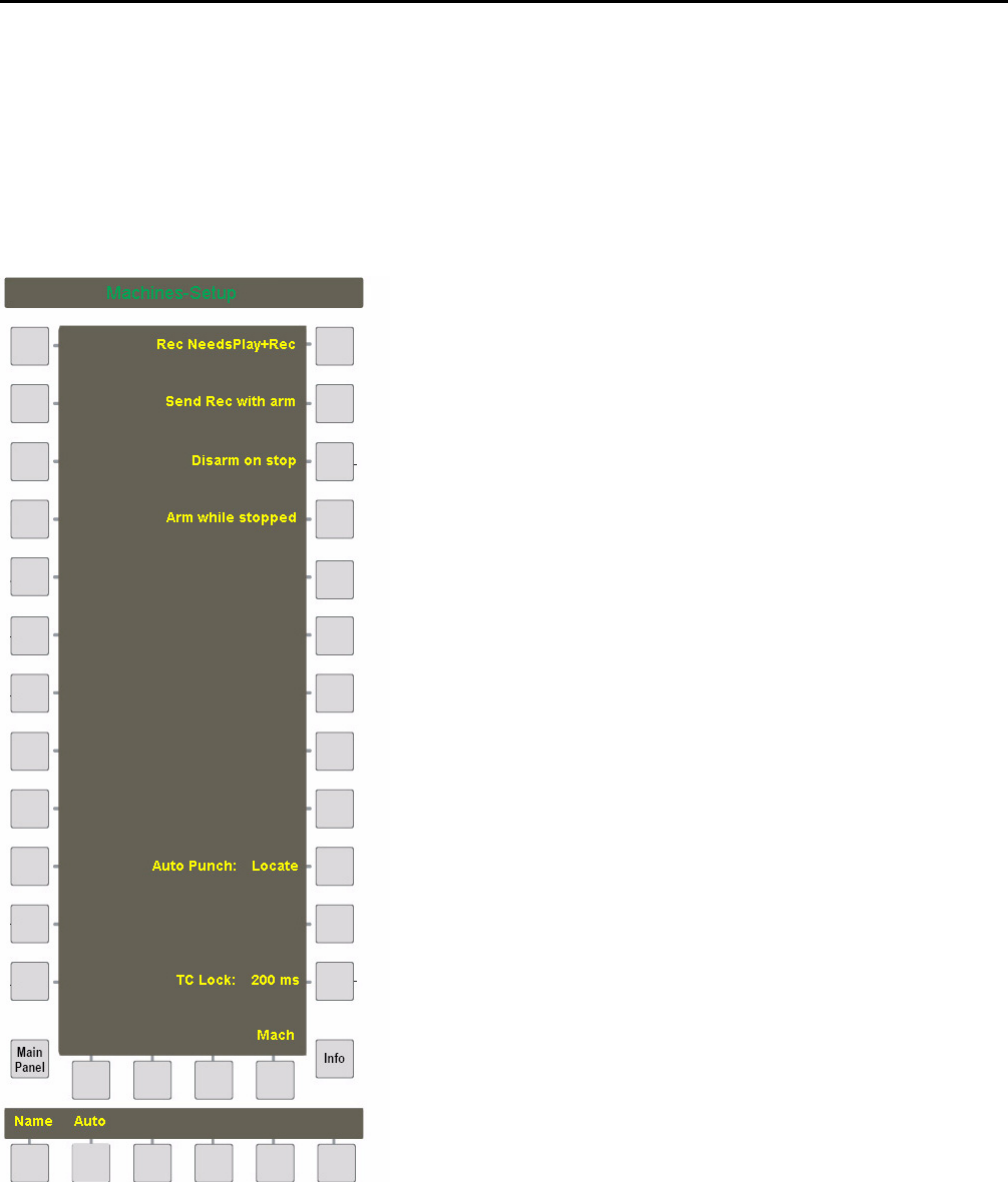

Machines - Setup Panel
