1. On the OU side, connect an RJ45 plug to the data cable. Place the RJ45 plug
into the RJ45 socket in the Outdoor Unit connection box.
2. On the OU side, connect the DC power leads within the Outdoor Unit
Connection Box. Use the + and - connections.
18
-+
RJ45 Socket
IU/OU
LINK
1
8
-+
RJ45 Socket
IU/OU
LINK
Rear Panel
Front Panel

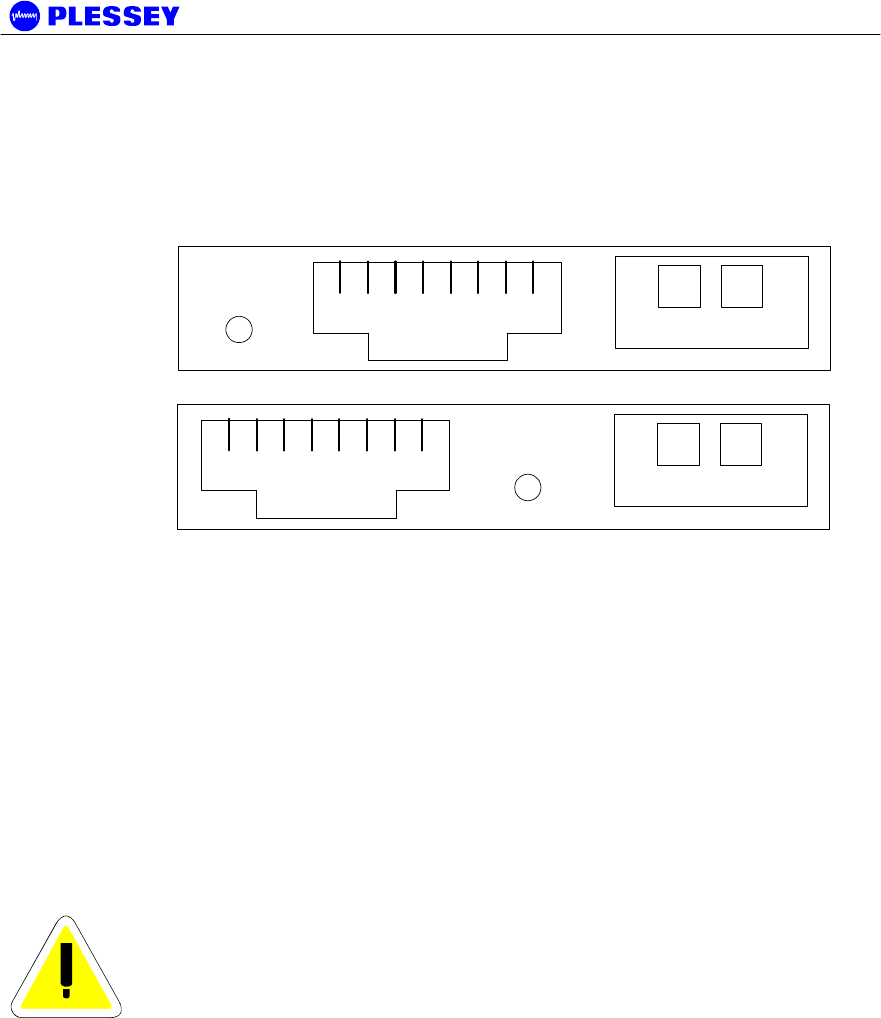

LOOKING AT THE "Outdoor Unit" CONNECTION BOX
(Located on the rear panel of the MDR IU, front panel of the Orion IU)
3. Close the Outdoor Unit Connection Box Cover using a 2.5mm Allen key. Make
sure the rubber gaskets seal correctly over the power and data cables.
4. Using cable ties, secure the cable to the pole at regular intervals.
5. On the IU side, connect an RJ45 plug to the data cable. Place the RJ45 plug
into the RJ45 socket in the "Outdoor Unit" connection box.
6. On the IU side, connect the DC power leads to the supplied GREEN Phoenix
plug. Insert this plug into the green socket in the "Outdoor Unit" connection box.
7. The user can see that there is a suitable IU/OU data interconnection if the
‘IU/OU Link’ LED of the IU is lit up green.
CAUTION
- UNDO THE SCREWS OF THE “CONNECTION BOX” IN A
UNIFORM MANNER. THIS ENSURES THAT THE
“CONNECTION BOX” GASKET MATERIAL RELEASES
STRESS UNIFORMLY AND DOES NOT LEAD TO THE
SECURING SCREWS BEING BENT DUE TO THE PRESSURE
PLACED ON THE CONNECTION BOX LID.
