One Page Set-up for T1/E1 Bench Test (without a PC)
1. PREPARATION: Complete the attached check list
This section applies to the MDR and Orion radio series with the only
difference being the location of the interface connectors on the MDR and
Orion IUs.
Complete the attached checklist (above section) to ensure that you have the
required equipment and information to continue.
Do not continue until you have read the checklist in the above section!

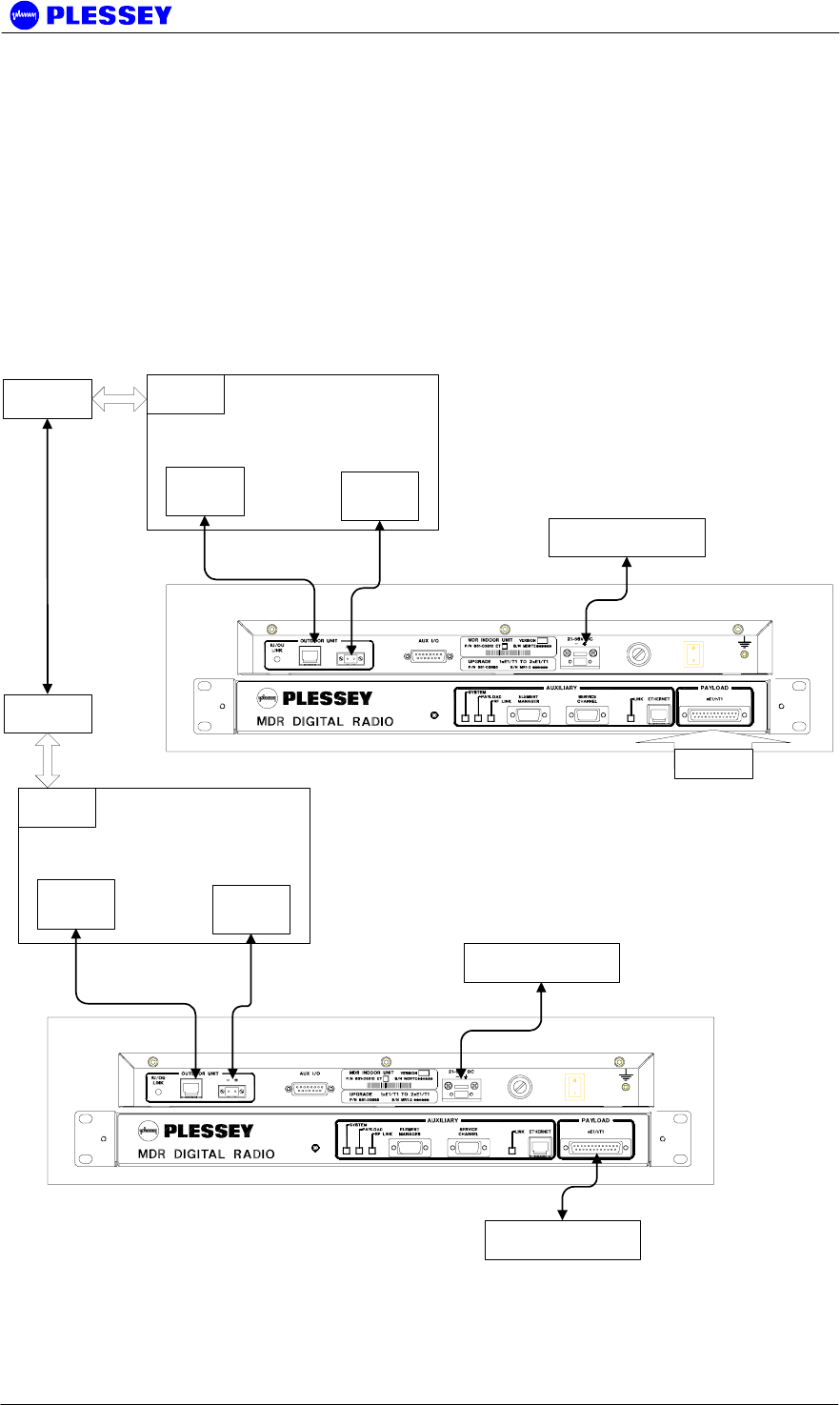

2. CONNECT AS SHOWN, THEN SWITCH POWER ON
Far Side Indoor Unit
Outdoor Unit
Near Side Indoor Unit
DC Power Supply
BER Tester
Power
Data
RF
Attenuator
DC Power Supply
Outdoor Unit
Power
Data
RF
Attenuator
Loopback
Connector
