IP CONFIGURATION OF THE MDR / Orion – BRIDGING CONFIGURATION

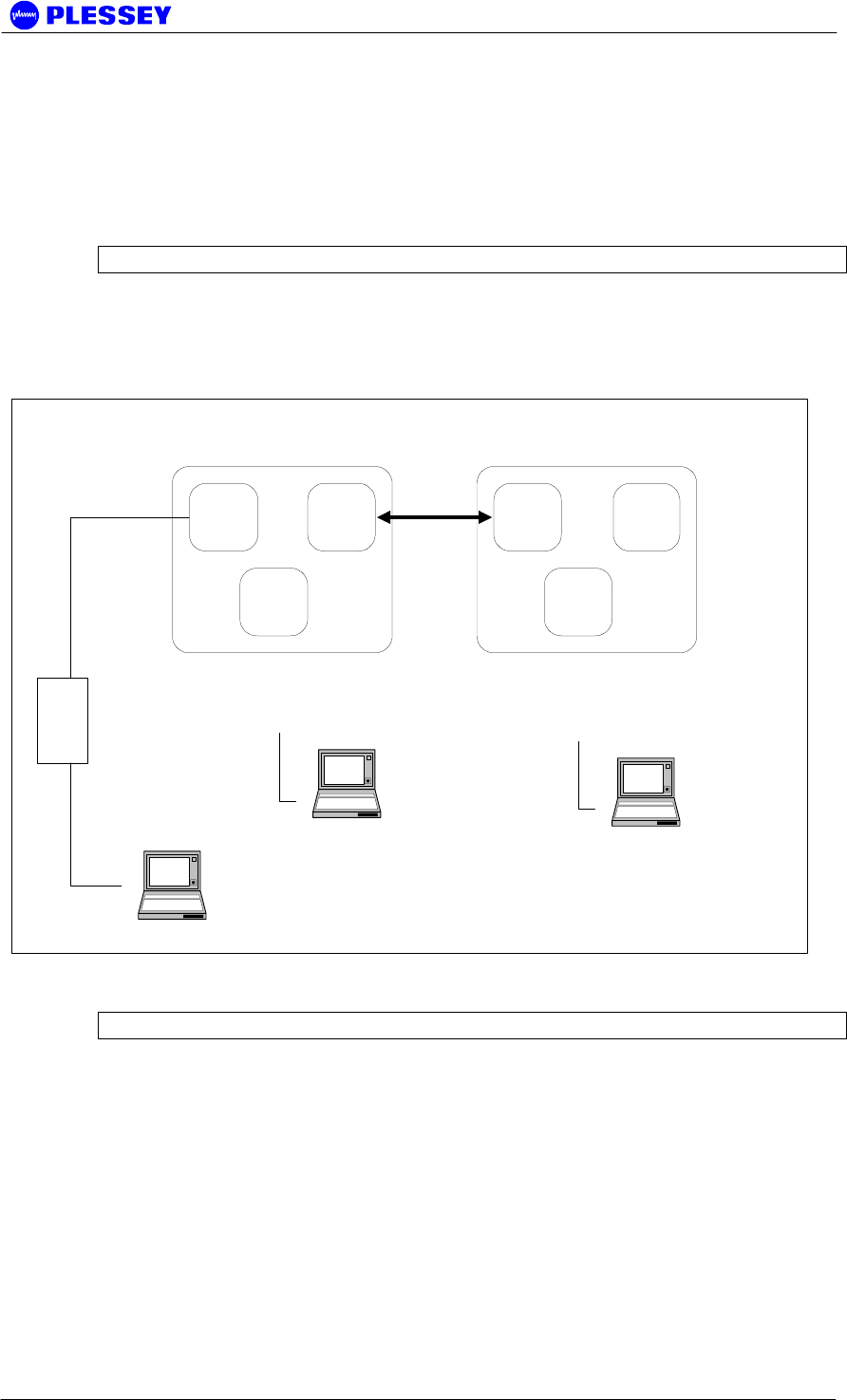

The following diagram shows the default (factory) network IP addresses assigned
to the various network ports on the MDR / Orion System: BRIDGING
CONFIGURATION.
NOTE For most networks, bridging is the preferred IP configuration.
192.168.1.2 192.168.4.2
192.168.2.2
192.168.4.3 192.168.1.3
192.168.3.3
Ethernet
10-BaseT
PPP
RS232
PPP
WIRELESS
PPP
RS232
Ethernet
10-BaseT
"NEAR" "FAR"
Laptop computer
Browser/NMS
192.168.1.4
(IP User assigned)
Hub
MDR / Orion - BRIDGING CONFIGURATION
Laptop computer
Browser/NMS
192.168.3.2
(IP Auto assigned)
"Server assigned"
Laptop computer
Browser/NMS
192.168.2.3
(IP Auto assigned)
"Server assigned"
NOTE The netmask for all the 192.168.x.x addresses is 255.255.255.0
