3 Appendix: SETUP OF A PC (WIN 95, 98, NT) TO ALLOW
PINGING OF A ‘REMOTE’-CONFIGURED INDOOR UNIT

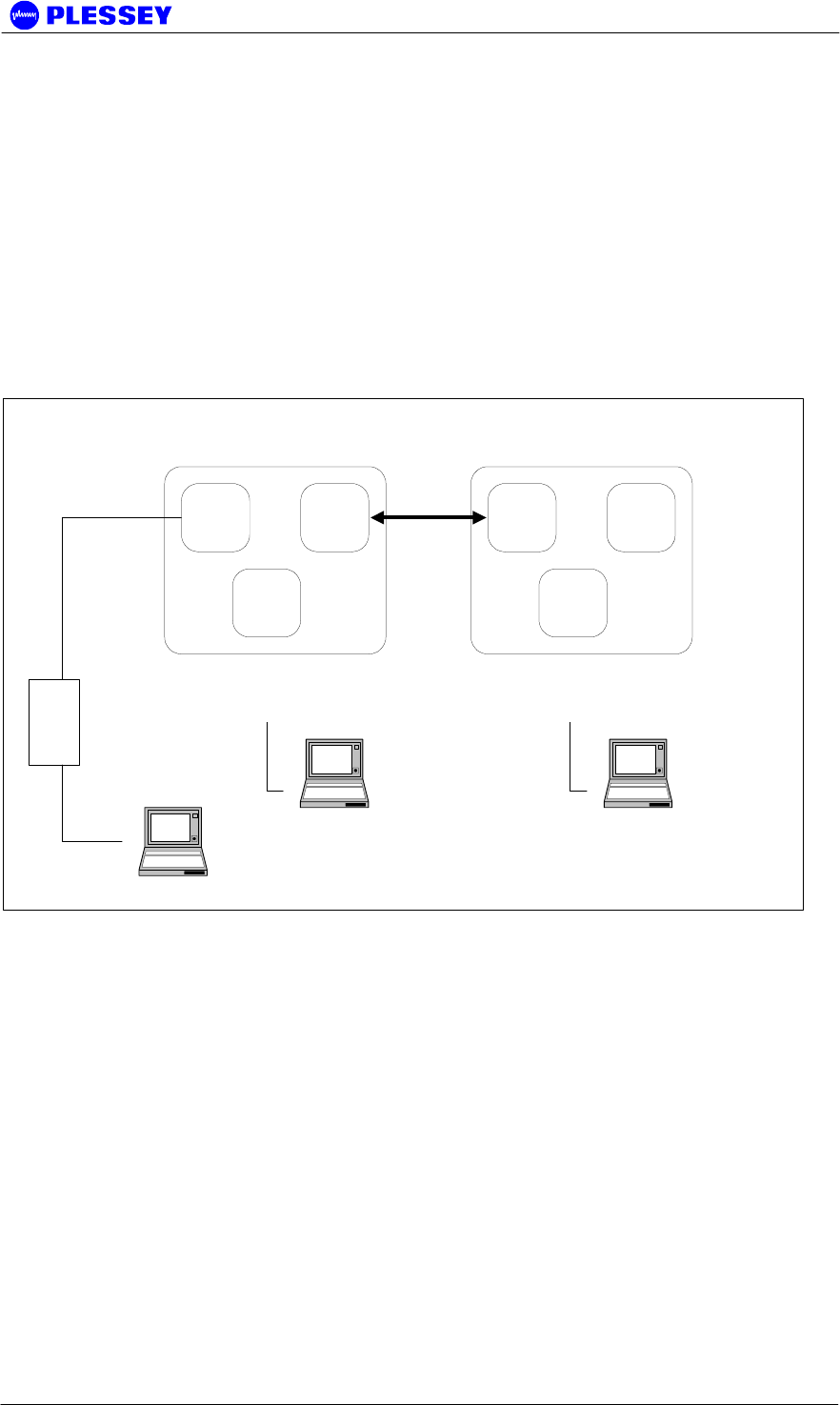

The following diagram shows the default (factory) network IP addresses assigned
to the various network ports on the MDR / Orion System: ROUTING
CONFIGURATION
IP CONFIGURATION OF THE MDR / Orion – ROUTING CONFIGURATION
10.2.1.2 10.10.9.9
10.13.1.1
10.10.9.10 10.11.1.2
10.12.1.1
Ethernet
10-BaseT
PPP
RS232
PPP
WIRELESS
PPP
RS232
Ethernet
10-BaseT
"NEAR" "FAR"
Laptop computer
Browser/NMS
10.2.1.3
(IP User assigned)
Hub
MDR / Orion - ROUTING CONFIGURATION
Laptop computer
Browser/NMS
10.12.1.2
(IP Auto assigned)
"Server assigned"
Laptop computer
Browser/NMS
10.13.1.2
(IP Auto assigned)
"Server assigned"
To allow pinging of an IU configured as a "remote unit" i.e. with an IP address of
(10.11.1.2) when the PC has a 10.2.1.3 IP address, 10.2.1.2 default gateway and
netmask 255.255.0.0, create batch files.
Batch file 1 - addroute.bat
route add 10.11.0.0 mask 255.255.0.0 10.2.1.3
Batch file 1 adds a route so that the IP stack on the PC "knows" where to send IP
packets destined for the net 10.11.0.0
