2.3 Setting Jumpers & Connectors

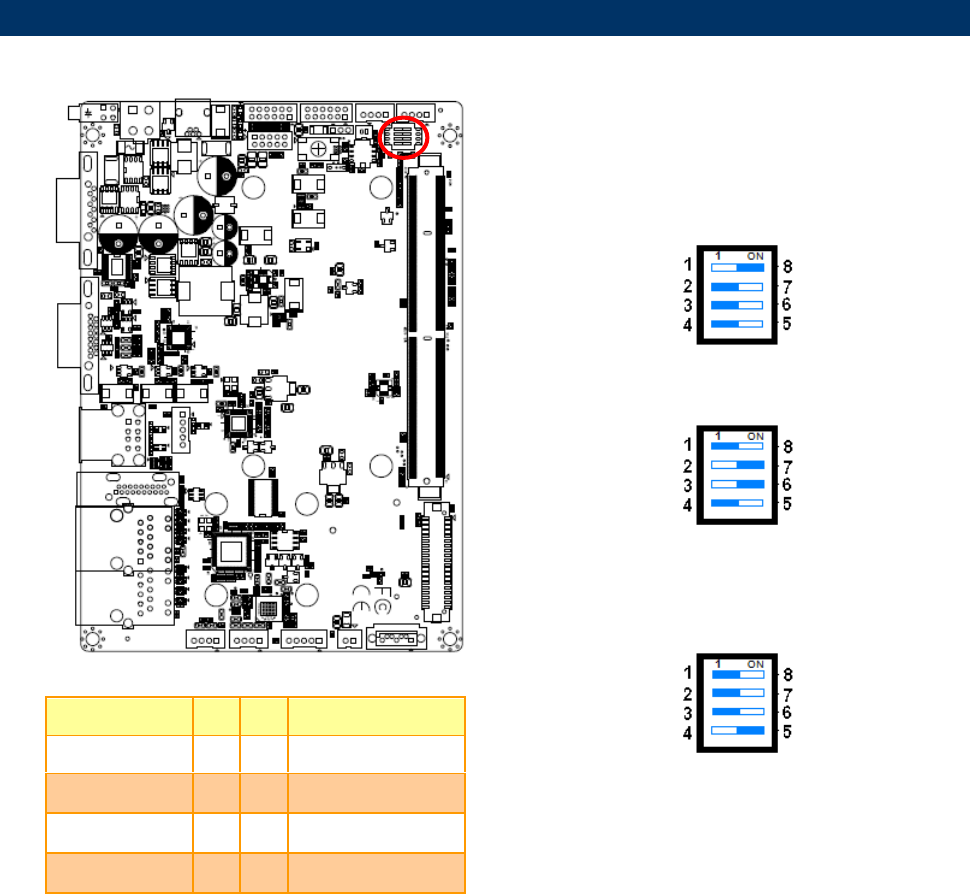

2.3.1 Boot Mode selector (SW1)
Signal
PIN
PIN
Signal
GND
1
8
BOOT_SEL0#
GND
2
7
BOOT_SEL1#
GND
3
6
BOOT_SEL2#
GND
4
5
FORCE_RECOV#
Booting from onboard eMMC
Boot from SD card
MFG tool mode mode(burning image file to
onboard eMMC)
