REV-SA01 Quick Installation Guide
11

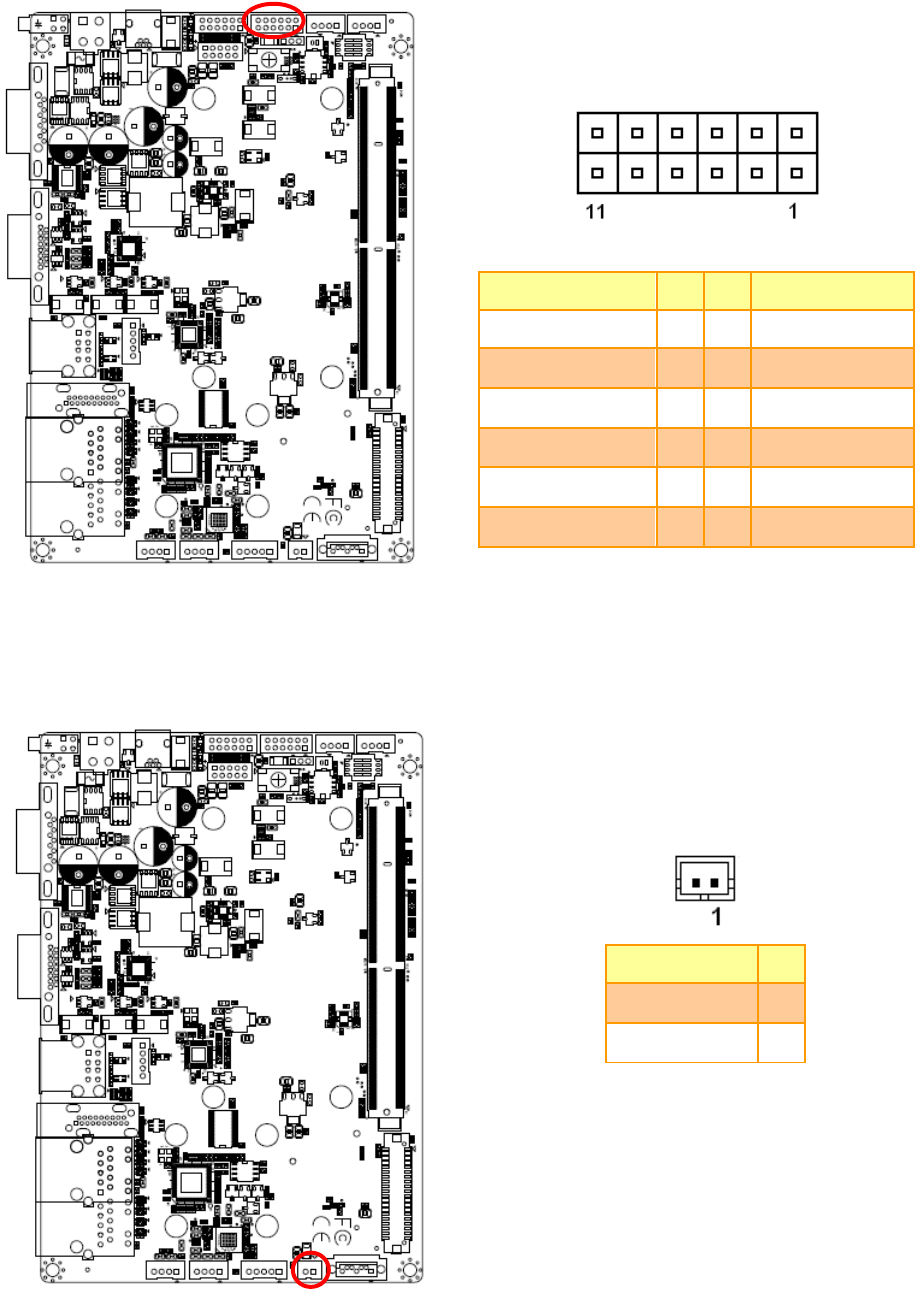

2.3.4 General purpose I/O connector (JDIO1)
Signal
PIN
PIN
Signal
DIO_GP10
1
2
DIO_GP20
DIO_GP11
3
4
DIO_GP21
DIO_GP12
5
6
DIO_GP22
DIO_GP13
7
8
DIO_GP23
SMB_DATA_9555
9
10
SMB_CLK_9555
+VDIO
11
12
GND
2.3.5 SATA Power connector (JSPWR1)
Signal
PIN
GND
1
+5V
2
