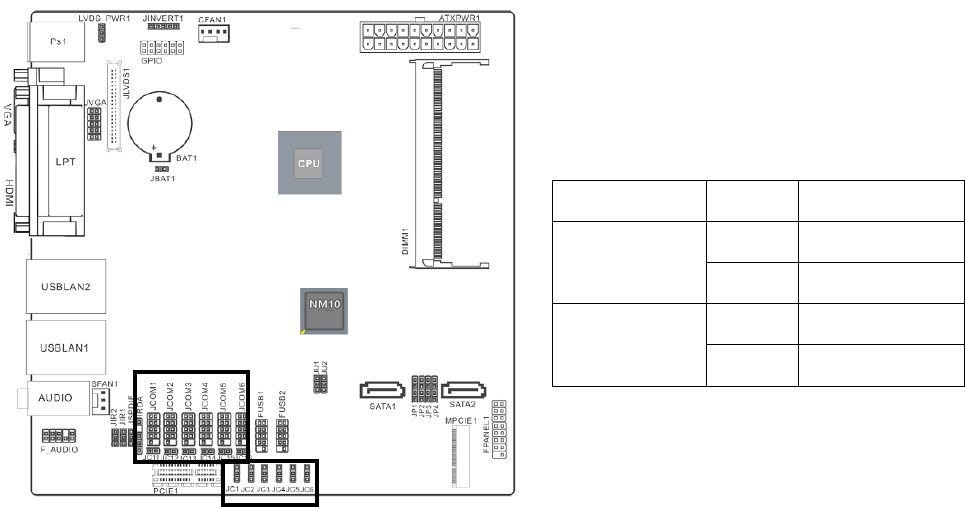

2.3.16 JCOM1-6 (9th Pin definition)
COM1 to COM6 9th Pin definition
Pin No.
Pin
Definition
JC11/12/13
CLOSE
RI
JC14/15/16
OPEN
USE JC1-JC6
JC1/2/3
1-2
+5V
JC4/5/6
2-3
+12V
