EMX-CDT User’s Manual
18 EMX-CDT User’s Manual

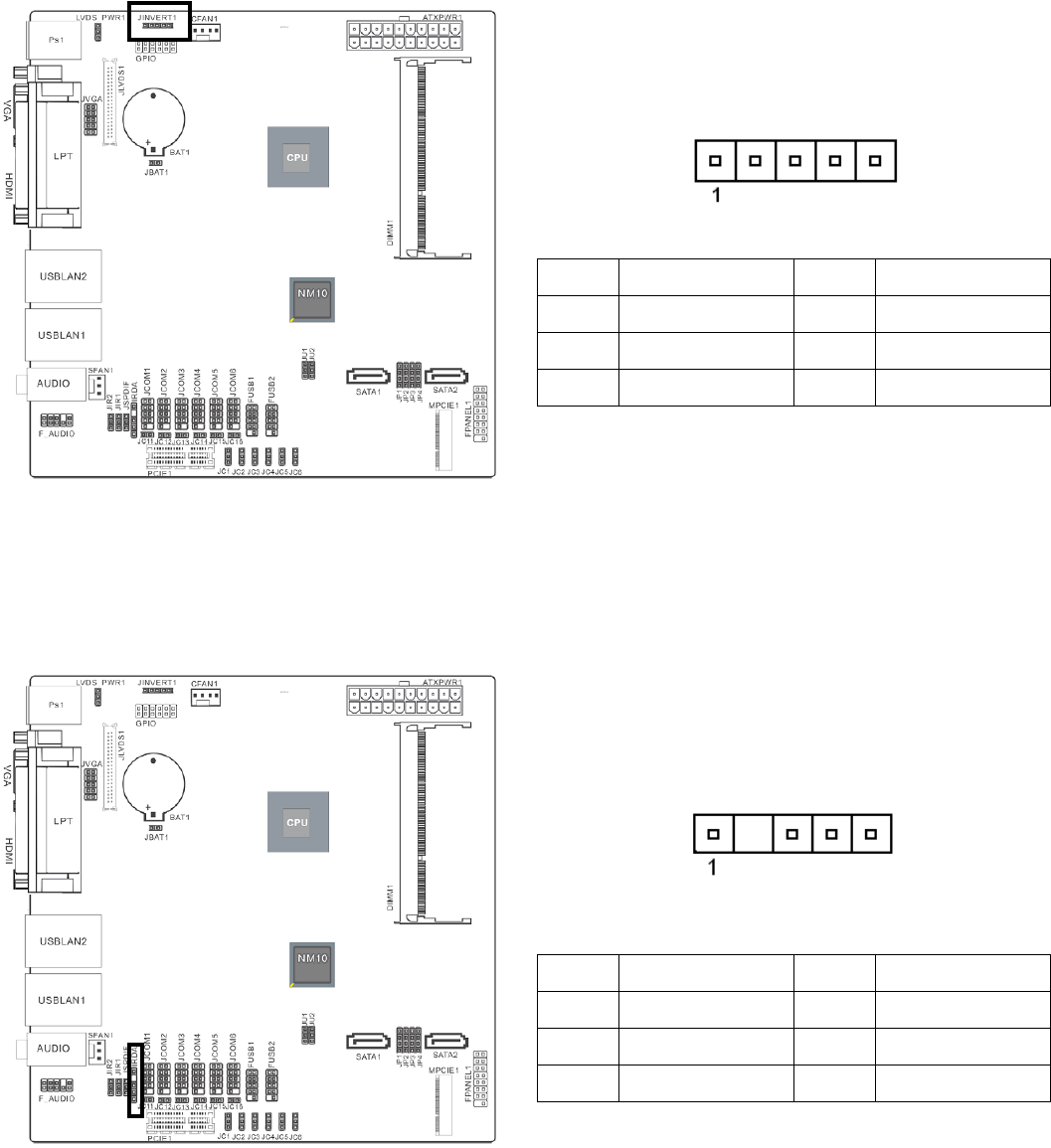

2.3.10 JINVERT1
Pin No.
Definition
Pin No.
Definition
1
12V
2
GND
3
BLEN
4
PWM
5
5V
2.3.11 IRDA
Only for specially used (Can’t send data)
Pin No.
Definition
Pin No.
Definition
1
VCC
2
3
IRRX
4
GND
5
IRTX
