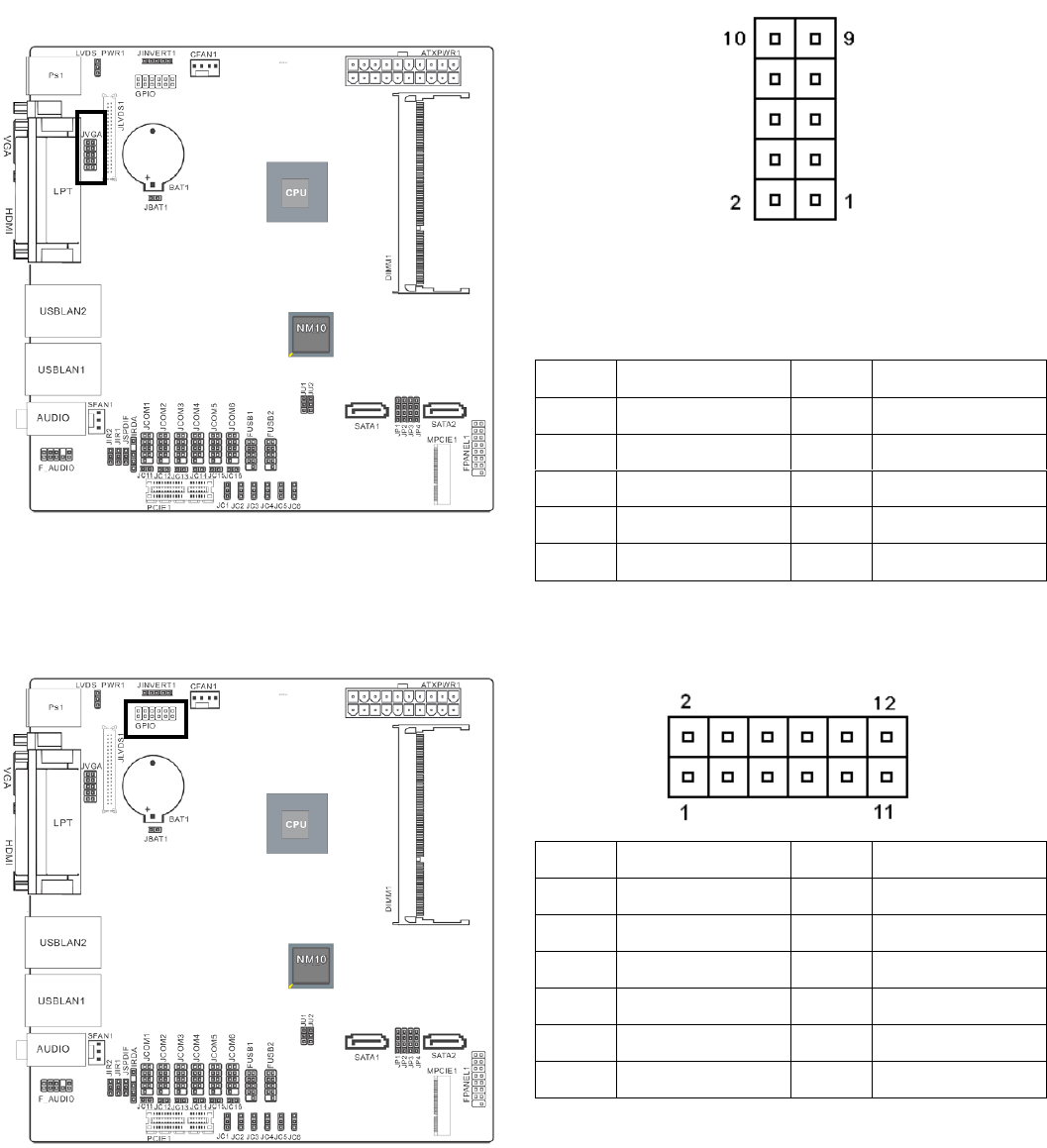

2.3.8 JVGA
(The I/O VGA DB15 connector & 2 x 5
pin-headers can’t use in the same time)
Pin No.
Definition
Pin No.
Definition
1
GND
2
R
3
GND
4
G
5
GND
6
B
7
HSYNC
8
VSYNC
9
DDC_DATA
10
DDC_CLK
2.3.9 GPIO
Pin No.
Definition
Pin No.
Definition
1
+5V
2
+12V
3
GPIO
4
GPIO
5
GPIO
6
GPIO
7
GPIO
8
GPIO
9
GPIO
10
GPIO
11
GND
12
GND
