User Manual

EMX-CDT User’s Manual
EMX-CDT User’s Manual 13

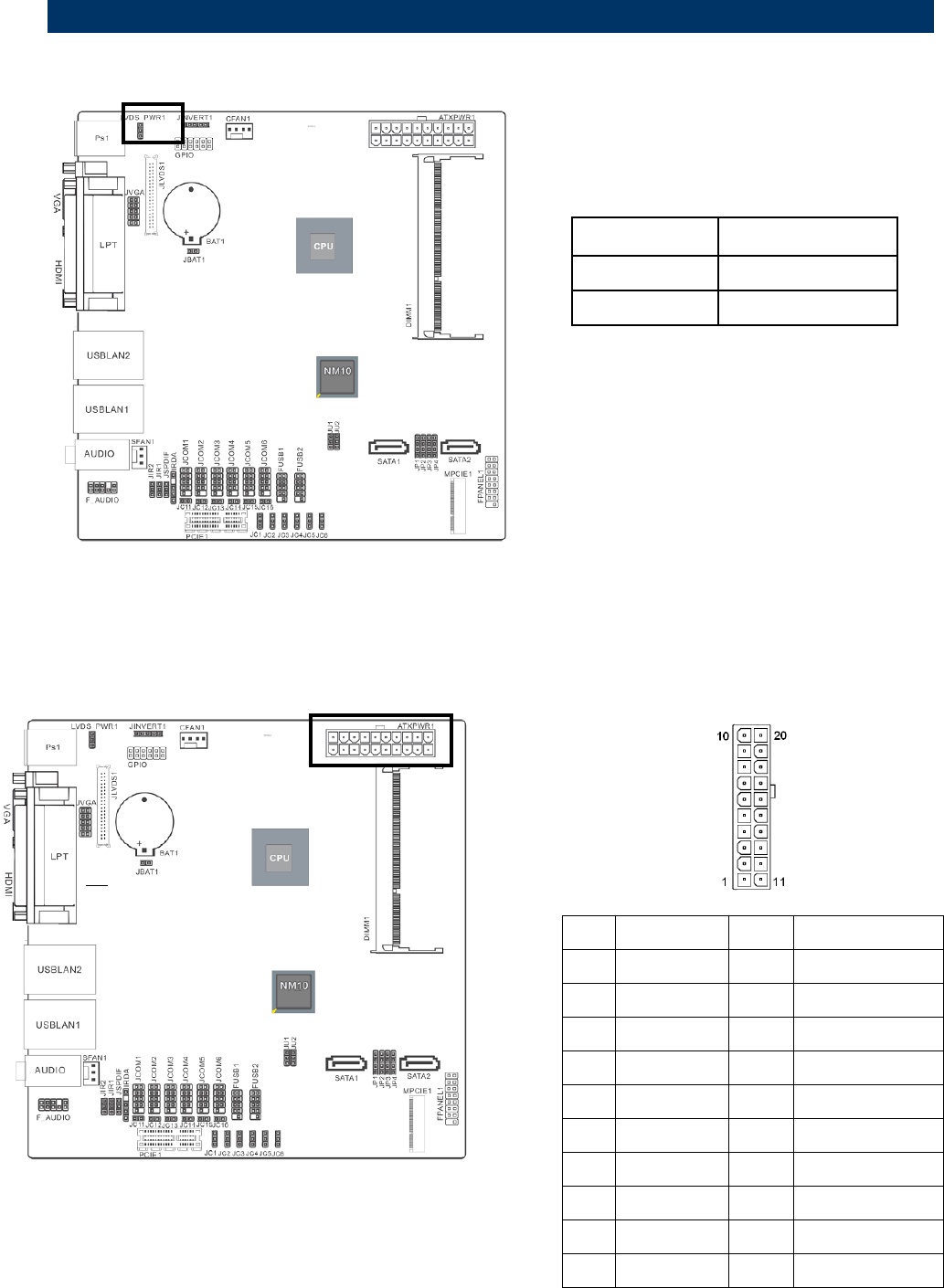

2.3 Setting Jumpers & Connectors
2.3.1 LVDS _PWR1
Pin No.
Definition
1-2
5V
2-3
3.3V
1-2, Set JLVDS1 Pin1,2,5,6 VDDSAFE as 5V
2-3, Set JLVDS1 Pin1,2,5,6 VDDSAFE as 3.3V
2.3.2 20PIN ATXPWR
Pin No.
Definition
Pin No.
Definition
1
+3.3V
2
+3.3V
3
GND
4
+5V
5
GND
6
+5V
7
GND
8
PWR OK
9
+5VSB
10
+12V
11
+3.3V
12
-12V
13
GND
14
PS-ON
15
GND
16
GND
17
GND
18
-5V
19
+5V
20
+5V
