User guide

EBM-CX700 Series
8 EBM-CX700 Series Quick Installation Guide

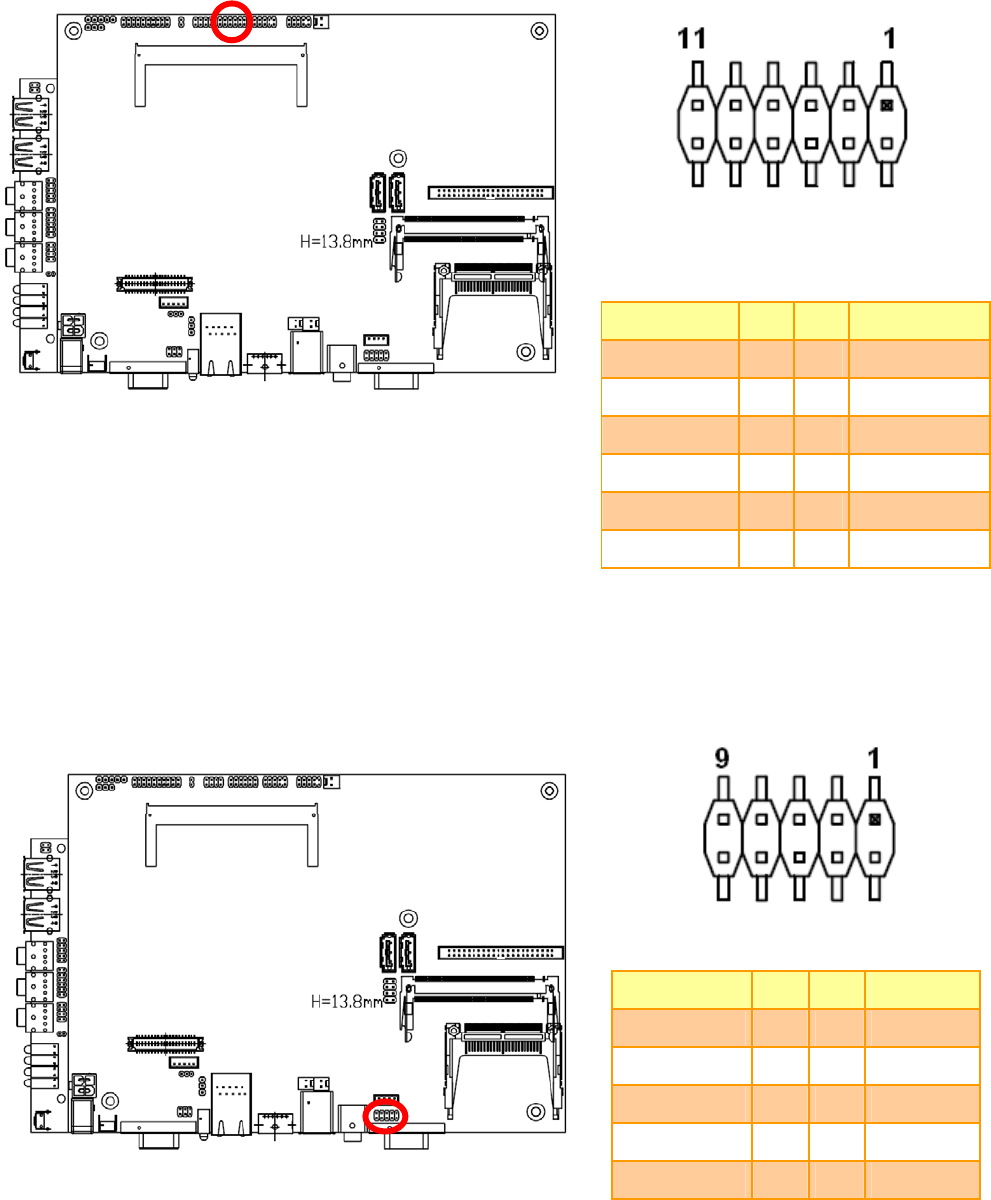

2.3.3 Audio connector (CN1)
Signal PIN PIN Signal
LINEOUT_R 1 2 LINEOUT _L
GND 3 4 GND
LIN_R 5 6 LIN_L
Mic In 7 8 Mic Bais
LINEOUT_JD 9 10 LINEIN_JD
MIC_JD 11 12 GND
2.3.4 Serial Port2 Connector (COM2)
Signal PIN PIN Signal
DCD 1 2 RxD
TxD 3 4 DRT
GND 5 6 DSR
RTS 7 8 CTS
RI 9 10 NC
