ECM-CX700 Series Quick Installation Guide
7

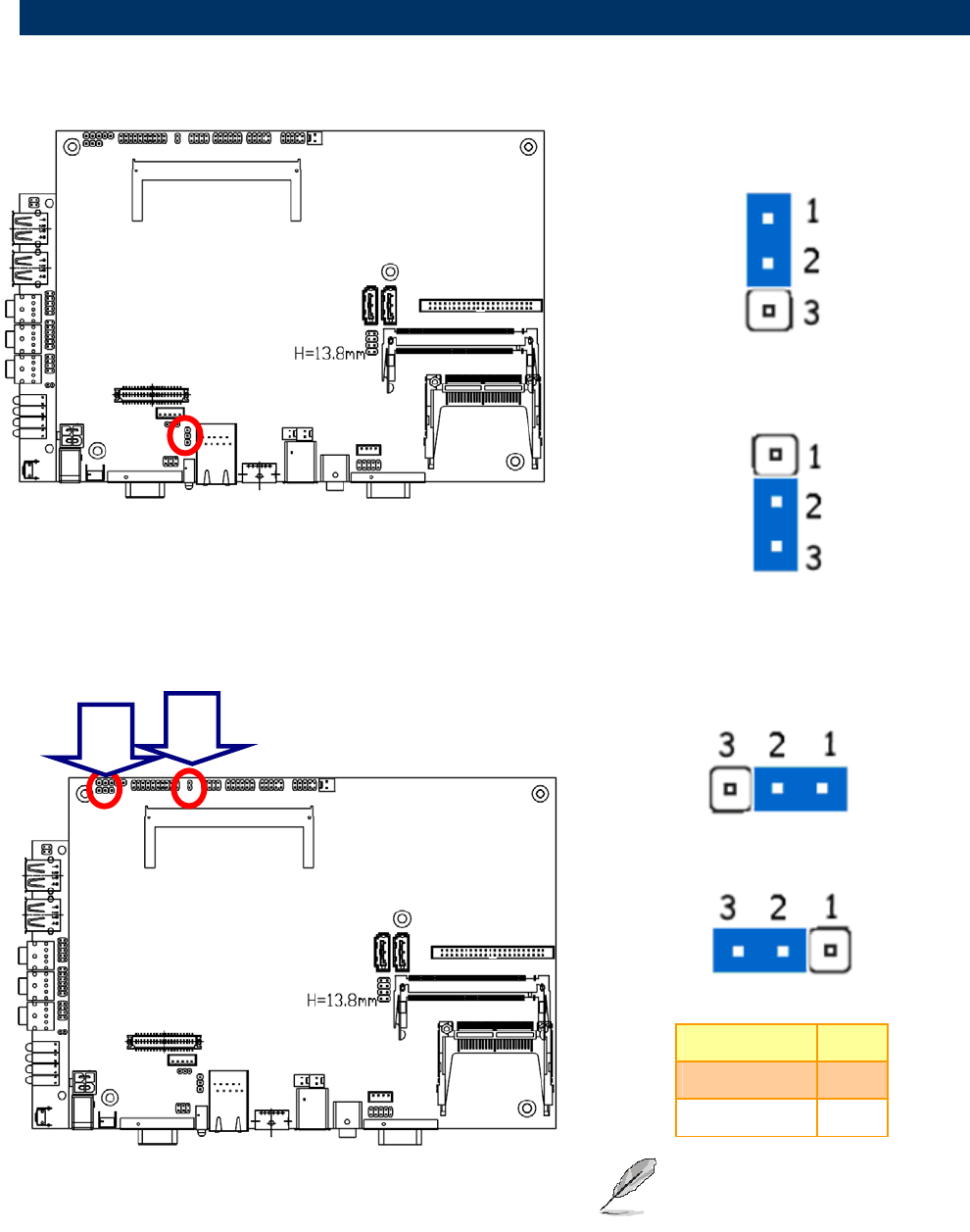

2.3 Setting Jumpers & Connectors
2.3.1 Clear CMOS (J1)
* Default
Protect *
Clear CMOS
2.3.2 AT/ATX Power Select (JP2, JP1)
* Default
AT
ATX*
JP1
Signal PIN
PWR_BN 1
GND 2
Note:
JP1 is available in ATX mode only.
JP1
JP2
