ECM-CX700 Series Quick Installation Guide
15
1.4 Audio / USB Daughter Board User’s Guide

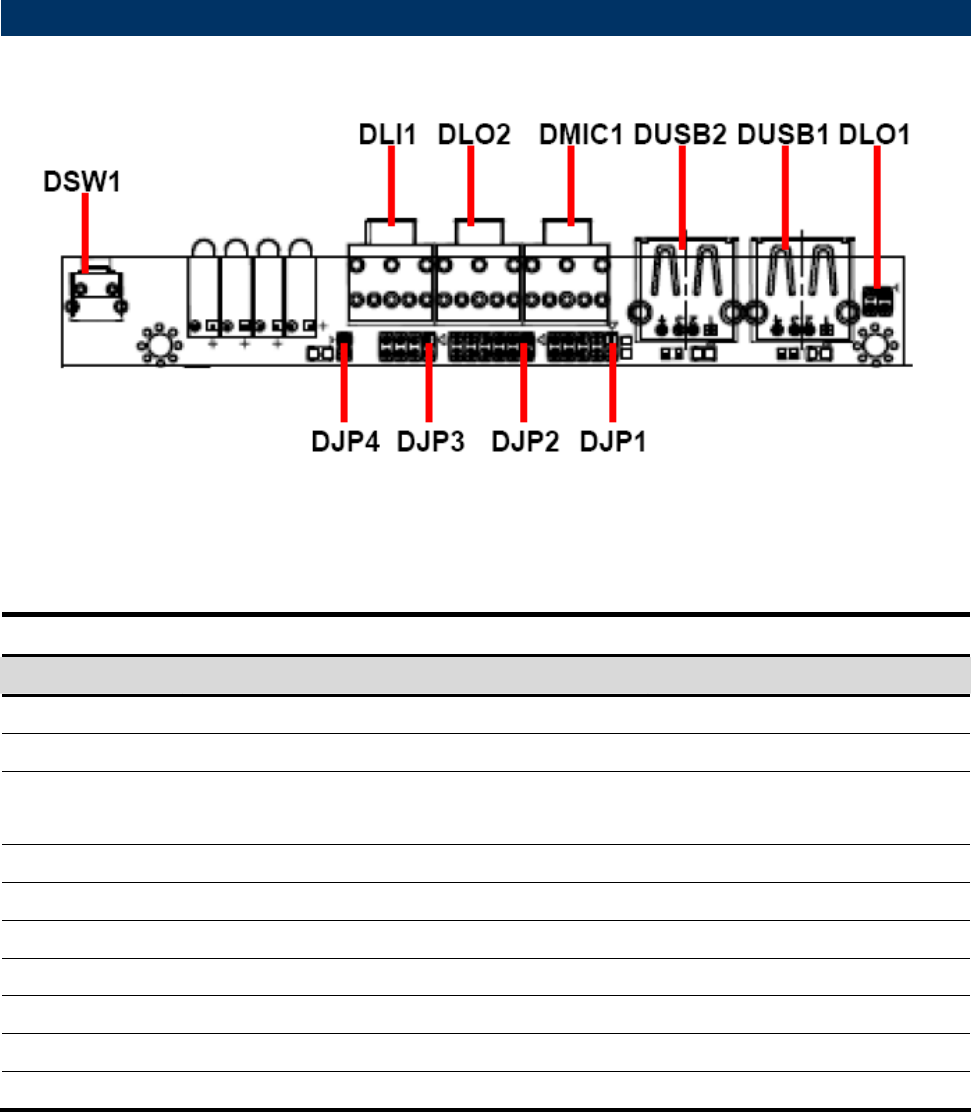

1.4.1 Jumper and Connector Layout
2.4.2 Connector List
Connectors
Label Function Note
DJP1
USB 1.1/2.0 connector
5 x 2 header, pitch 2.0mm
DJP2
Audio connector 6 x 2 header, pitch 2.0mm
DJP3
Power & HDD & LAN LED indicator
connector
4 x 2 header, pitch 2.0mm
DJP4
Power button connector 2 x 1 header, pitch 2.0mm
DLI1
Line in connector Phone Jack
DLO1
Line out connector 2 x 2 header, pitch 2.0mm
DLO2
Line out connector Phone Jack
DMIC1
Mic in connector Phone Jack
DUSB1, DUSB2
USB 1.1/2.0 connector
DSW1
Reset button
