EBM-CX700 Series
14 EBM-CX700 Series Quick Installation Guide

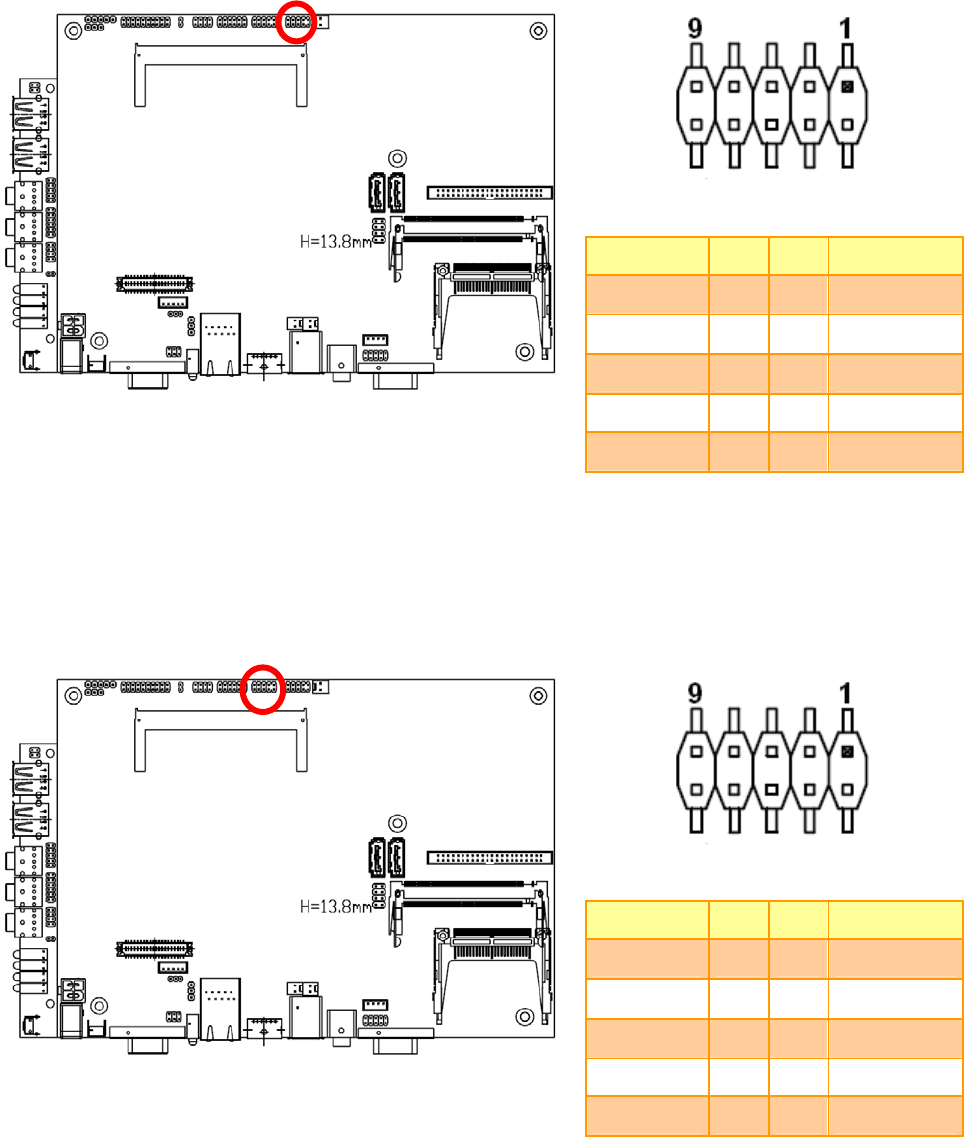

2.3.14 USB Connector 2 & 3 (USB2)
2.3.15 USB Connector 4 & 5 (USB1)
Signal PIN PIN Signal
+5V 1 2 GND
D2- 3 4 GND
D2+ 5 6 D3+
GND 7 8 D3-
GND 9 10 +5V
Signal PIN PIN Signal
+5V 1 2 GND
D4- 3 4 GND
D4+ 5 6 D5+
GND 7 8 D5-
GND 9 10 +5V
