ECM-CX700 Series Quick Installation Guide
13

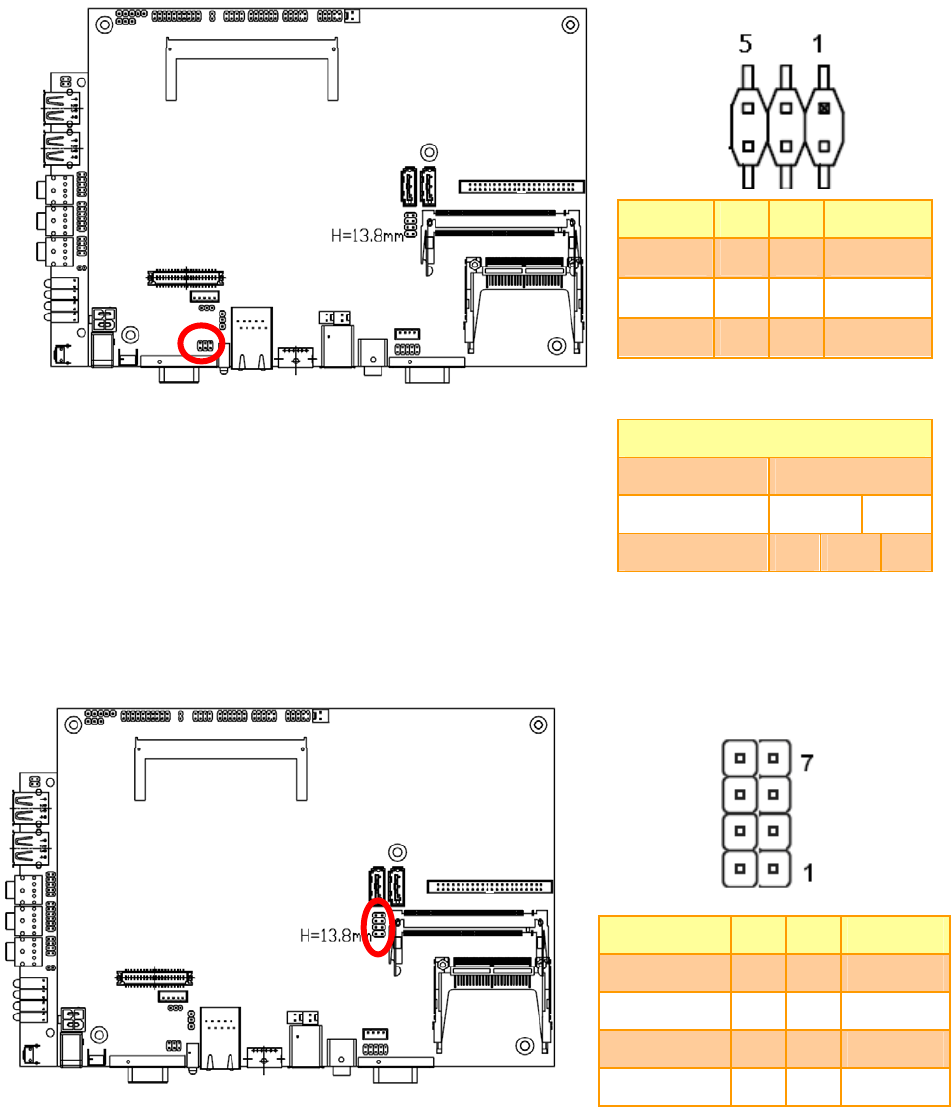

2.3.12 TV Connector (JTV1)
Signal PIN PIN Signal
GND 2 1 CVBS/Pb
C/Pr 4 3 Y
GND 6 5 GND
DAC Output Mode
AV-signal CVBS
S-video Y C
HDTV Pb Y Pr
2.3.13 Keyboard & Mouse Connector (KB2)
Signal PIN PIN Signal
NC 8 7 NC
MCLK 6 5 MDAT
+5V 4 3 GND
KCLK 2 1 KDAT
