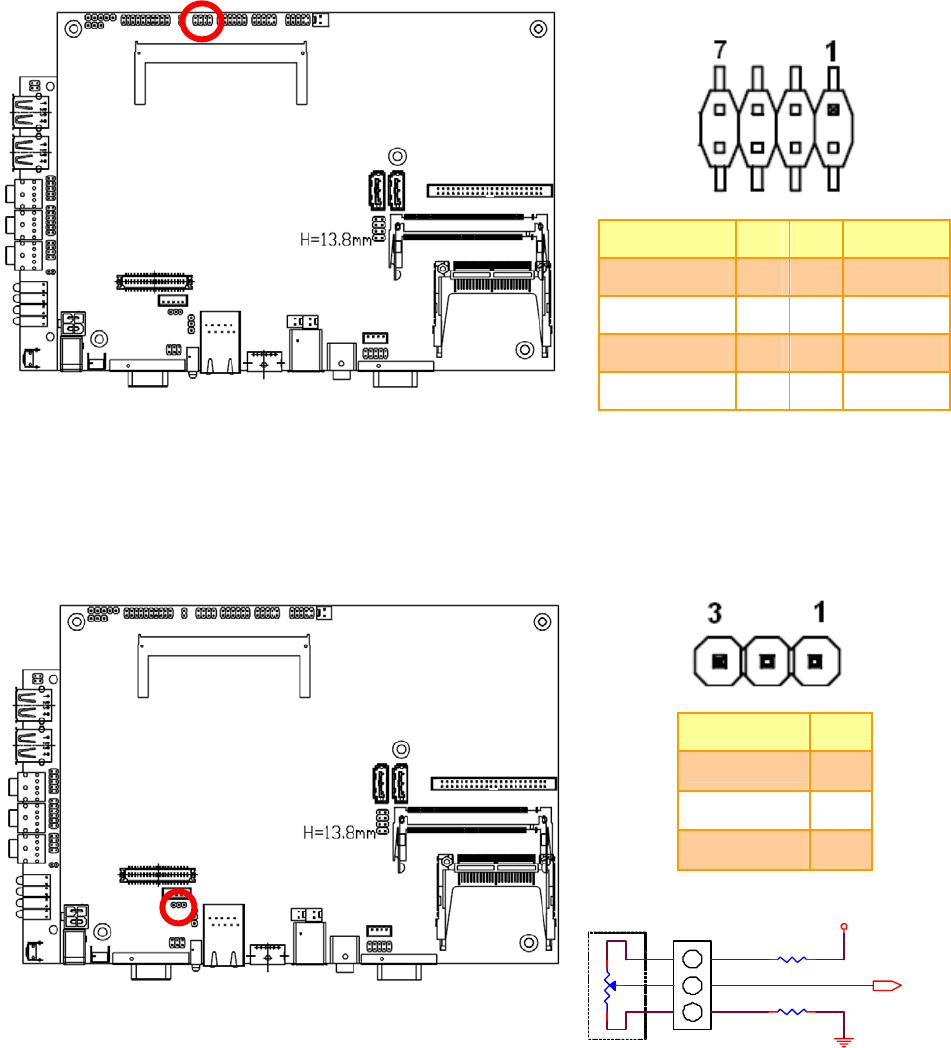

2.3.10 LED Indicator Connector (JP3)
2.3.11 LCD Backlight Brightness Adjustment Connector (JP5)
Signal PIN
+5V
1
VR
2
GND
3
VCC
JBKL1
pin 4
JVR1
3
2
1
Variation Resistor
(Recommended: 4.7KΩ, >1/16W)
Signal PIN PIN Signal
GND 1 2 +5V
DHDLED 3 4 +5V
DACT_LAN1 5 6 +5VSUS
DACT_LAN2 7 8 +5VSUS
